10-position, 1-row shrouded socket strip with 2mm pitch. Features female socket contacts made of bronze with gold plating. Straight, top-entry, surface mount orientation with solder termination. Black housing, 2mm width and depth, 20.56mm length. Operates from -55°C to 125°C, lead-free, and RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec MMS-110-02-L-SV technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Contact Type
Female Socket
Depth
2mm
Gender
Receptacle
Housing Color
Black
Lead Free
Lead Free
Length
20.56mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
10
Number of Positions
10
Number of Rows
1
Orientation
Straight
Packaging
Rail/Tube
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MMS
Termination
Solder
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Samtec MMS-110-02-L-SV Datasheet
Download the complete datasheet for Samtec MMS-110-02-L-SV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

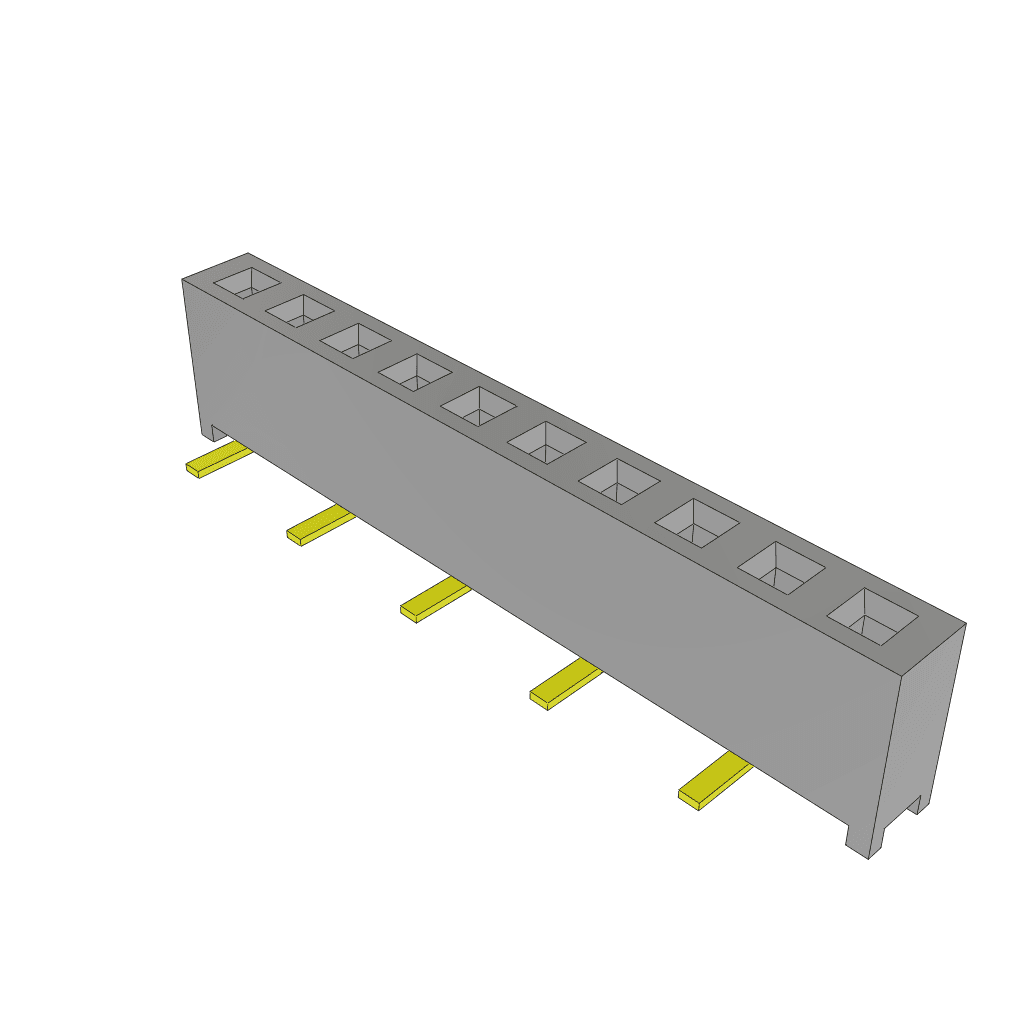

Product Images
