48-position, 2-row, 2mm pitch socket strip for board-to-board applications. Features right-angle, side-entry, surface-mount termination with gold-plated bronze female socket contacts. Insulation material is black polymer, and the housing is also black. Operating temperature range is -55°C to 125°C, with lead-free and RoHS compliance.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec MMS-124-02-L-DH technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Gender
Receptacle
Height
4.27mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
48mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
48
Number of Positions
48
Number of Rows
2
Packaging
Rail/Tube
Pitch
2mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MMS
Termination
Solder
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Samtec MMS-124-02-L-DH Datasheet
Download the complete datasheet for Samtec MMS-124-02-L-DH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

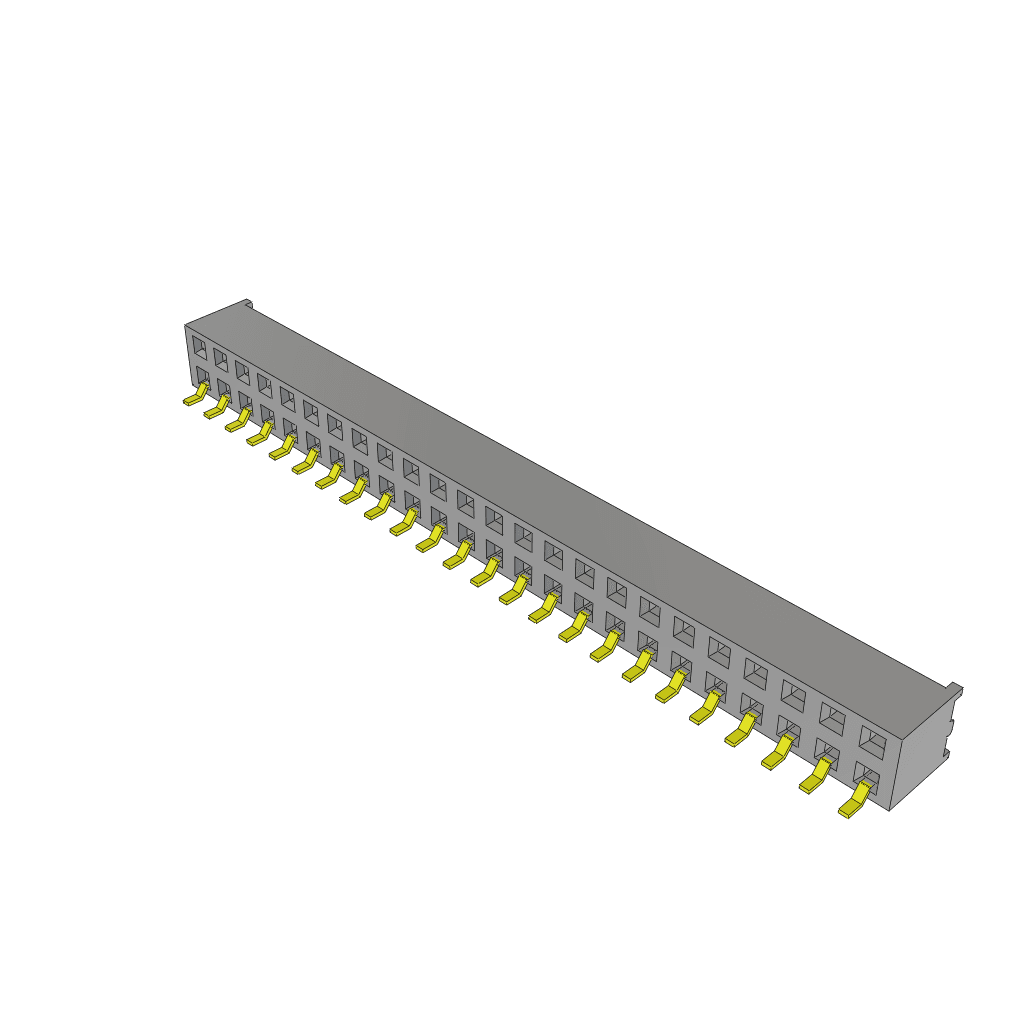

Product Images
