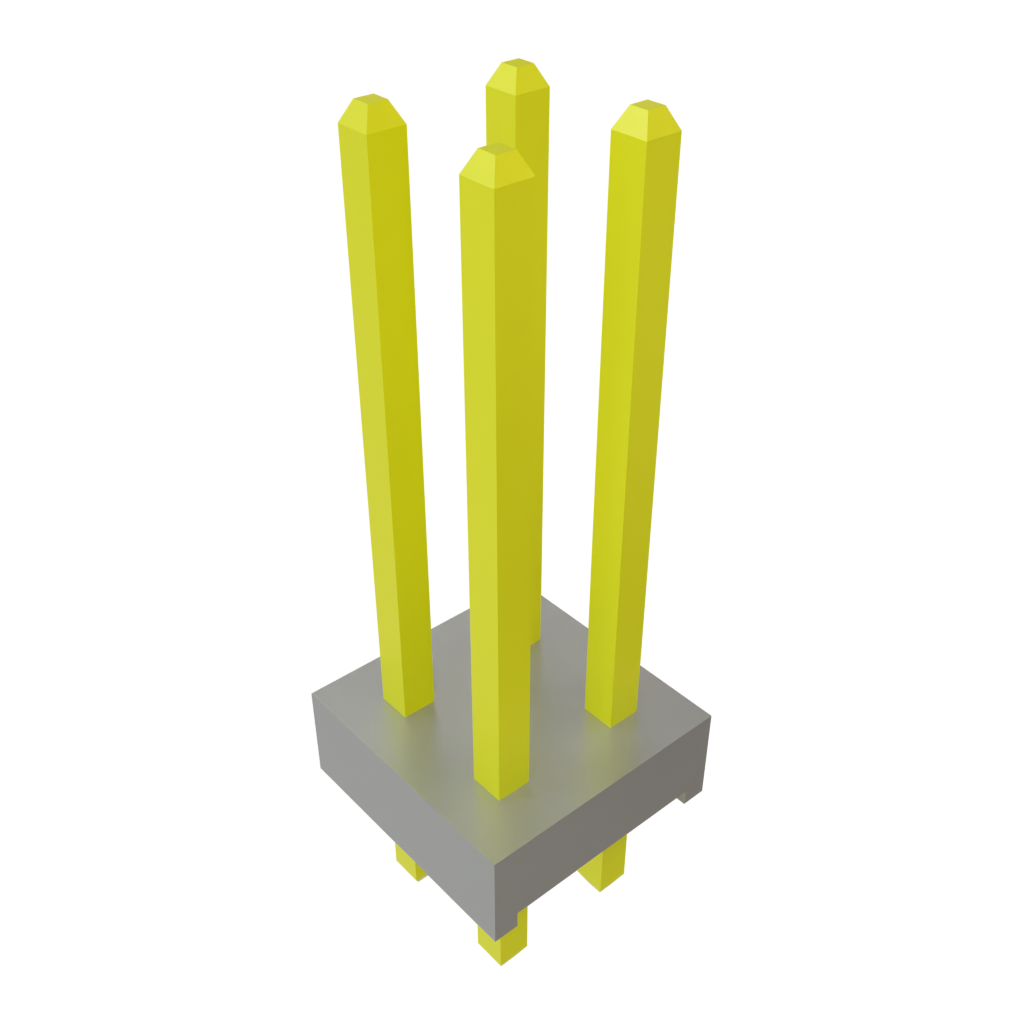

The MTMM-102-08-G-D-330 is a 4-contact unshrouded header from Samtec, designed for board-to-board connections. It features a HDR gender and a terminal pitch of 2mm, with 2 rows of contacts. The header is suitable for through-hole mounting and has a maximum current rating of 3A per contact. Operating temperature range is from -55°C to 125°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MTMM-102-08-G-D-330 technical specifications.
General
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 4 |
| Terminal Pitch | 2mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 9.88mm |
| Mating Length | 8.38mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
