5-contact, female receptacle for telecom and datacom applications. Features a right-angle, surface mount terminal with a 0.8mm pitch and gold-plated bronze contacts. Rated for 30V AC/DC, operates from -50°C to 85°C, and boasts a UL94 V-0 flammability rating. This unshielded, locking connector supports USB 2.0 and is RoHS compliant.
Voltage Rating30V
MountingSurface Mount, Horizontal
Quick Jump:
Technical Specifications
Samtec MUSB-05-S-AB-SM-A technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Depth
9.2mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Insulation Color
Black
Length
9.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-50°C
Max Voltage Rating (AC)
30V
Mount
Surface Mount, Horizontal
Number of Contacts
5
Number of Ports
1
Orientation
Right Angle
Package Quantity
1
Packaging
Tray
Pitch
0.8mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MUSB
Shielding
Unshielded
Termination
Solder
USB Standard
USB 2.0
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Samtec MUSB-05-S-AB-SM-A Datasheet
Download the complete datasheet for Samtec MUSB-05-S-AB-SM-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

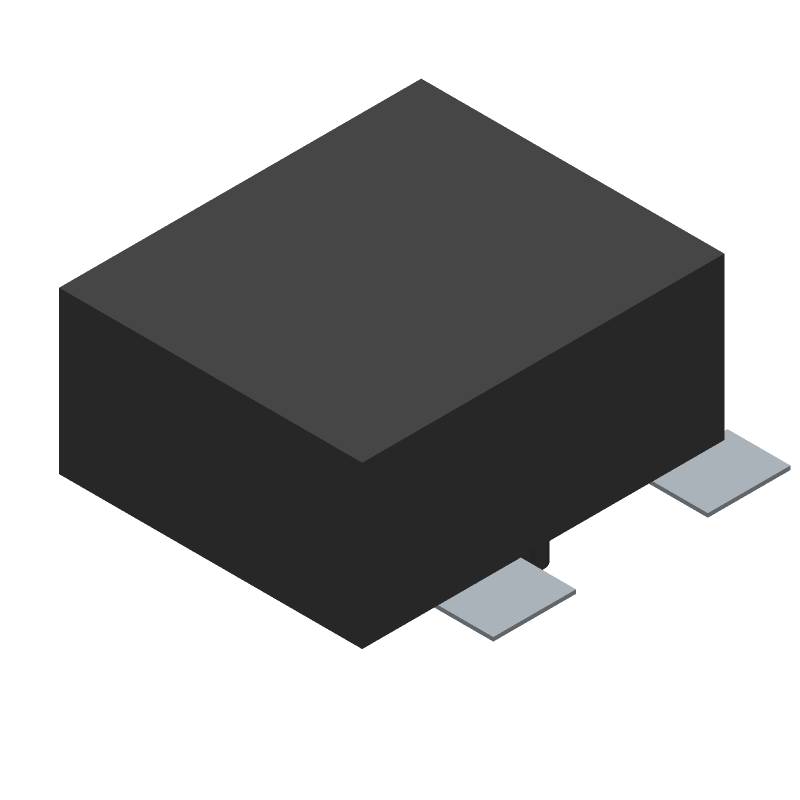

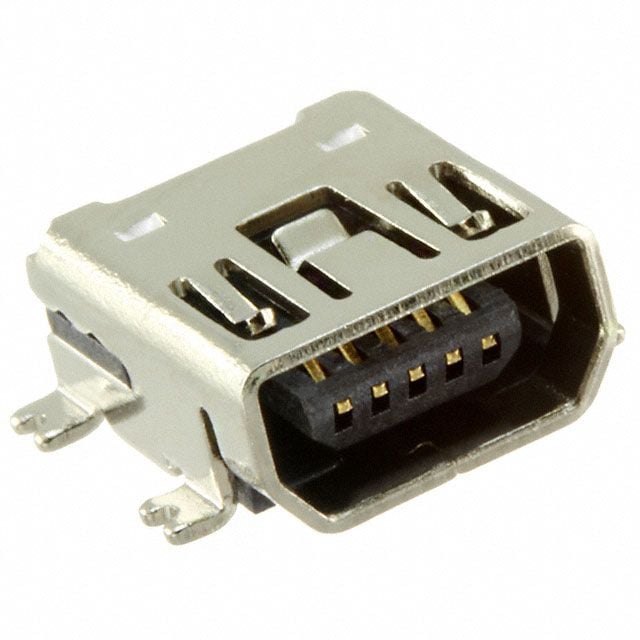

Product Images
