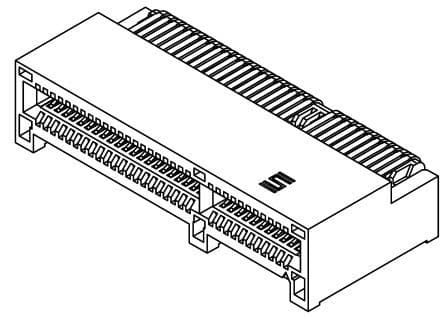

Right-angle card edge connector featuring 64 contacts arranged in 2 rows with a 1mm pitch. This female socket connector utilizes gold-plated bronze contacts for reliable connectivity and supports a 2.5A current rating. Designed for through-hole mounting with solder termination, it operates within a temperature range of -55°C to 125°C and boasts a black polymer insulator.
Current Rating2.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec PCIE-064-02-F-D-RA technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Current Rating
2.5A
Gender
Female
Insulation Material
Polymer
Length
39mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
64
Number of Positions
64
Number of Rows
2
Orientation
Right Angle
Packaging
Rail/Tube
Pitch
1mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PCI Express® (PCIe)
Termination
Solder
Width
9.45mm
Compliance
RoHS
Compliant
Datasheet
Samtec PCIE-064-02-F-D-RA Datasheet
Download the complete datasheet for Samtec PCIE-064-02-F-D-RA to view detailed technical specifications.
