Technical Specifications

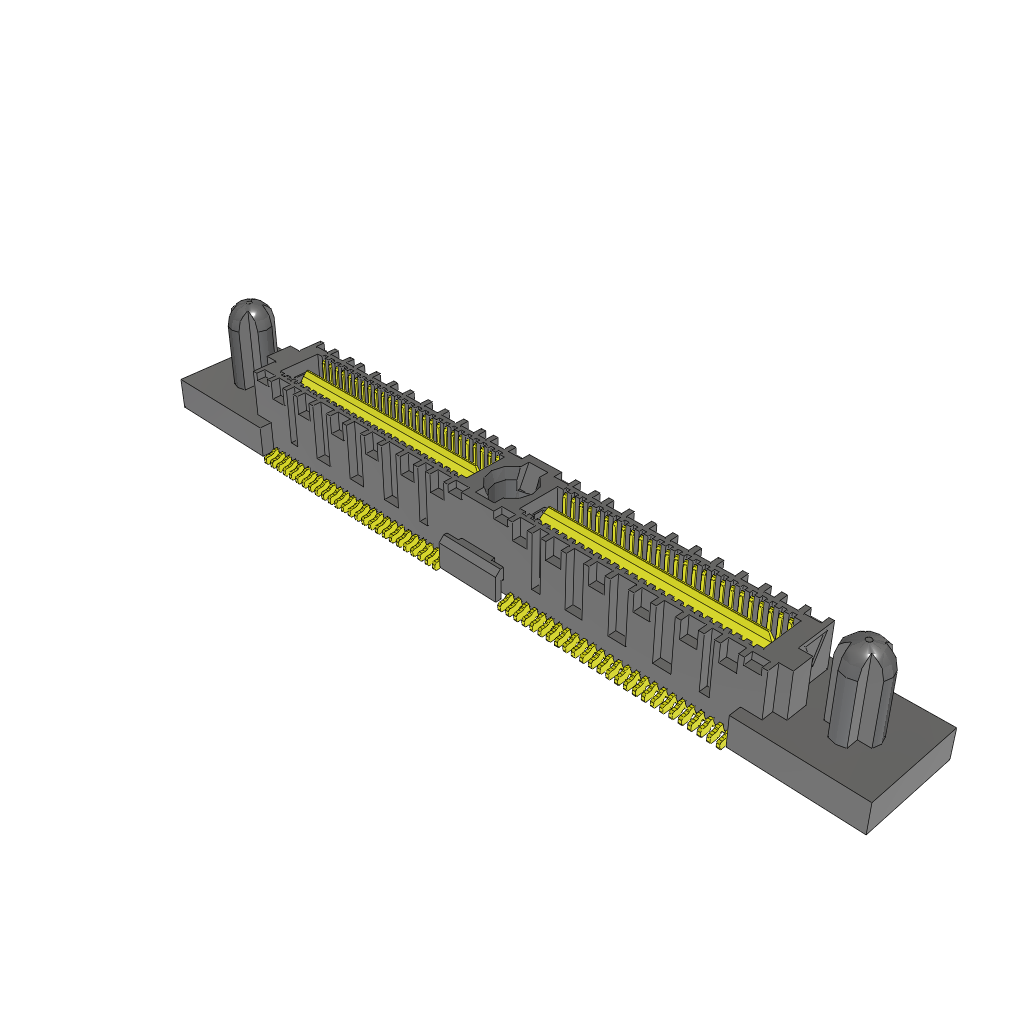

Samtec QMS-052-05.75-H-D-A-GP technical specifications.
General
Terminal Pitch (mm)
0.635
Body Orientation
Straight
Mounting
Surface Mount
Number of Rows
2
Product Length (mm)
55.12
Product Depth (mm)
7.52
Type
Micro High Speed Terminal Strip
Gender
HDR
Number of Contacts
104
Termination Method
Solder
Min Operating Temperature
-55°C
Max Operating Temperature
125°C
Max Current Rating
(2.6/15.7)/ContactA
Max Voltage Rating
300VAC
Compliance
Cage Code
55322
EU RoHS
Yes
HTS Code
8536694040
Schedule B
8536694040
ECCN
EAR99
Automotive
No
AEC Qualified
No
PPAP
No
Radiation Hardening
No
RoHS Versions
2011/65/EU, 2015/863
Datasheet
Samtec QMS-052-05.75-H-D-A-GP Datasheet
Download the complete datasheet for Samtec QMS-052-05.75-H-D-A-GP to view detailed technical specifications.
