SAMTEC

QTH-030-01-L-D-A-K-TR

Datasheet

0.5mm 60 Pos 2 Row HDR, 1A, 125V, SMT, Gold Plated

Samtec

QTH-030-01-L-D-A-K-TR

Name: QTH-030-01-L-D-A-K-TR Samtec
Brand: Samtec
SKU: QTH-030-01-L-D-A-K-TR

0.5mm 60 Pos 2 Row HDR, 1A, 125V, SMT, Gold Plated

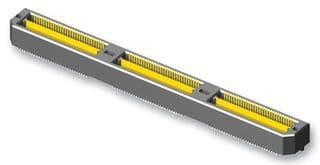

High-speed micro terminal strip header, male, 60 positions, 2 rows, 0.5mm pitch, straight orientation, surface mount. Features bronze contacts with gold plating, 1A current rating, and 125V AC voltage rating. Operates across a -55°C to 125°C temperature range. Mated stacking height is 5mm. Packaged on tape and reel.

Current Rating1A

MountingSurface Mount

Quick Jump:

Pricing & Availability

Distributor	Package Type	Min Qty	1+	50+	100+	250+	Stock	Action
Samtec	Tape & Reel	1	5.64	5.17	4.85	4.37	33,277 In Stock	View

Technical Specifications

Samtec QTH-030-01-L-D-A-K-TR technical specifications.

General

Contact Material	Bronze
Contact Plating	Gold
Current Rating	1A
Depth	7.11mm
Gender	Male
Lead Free	Lead Free
Length	20mm
Mated Stacking Heights	5mm
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Max Voltage Rating (AC)	125V
Mount	Surface Mount
Number of Contacts	60
Number of Positions	60
Number of Rows	2
Orientation	Straight
Packaging	Tape and Reel
Pitch	0.5mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	3.9mm
Series	Q Strip® QTH
Termination	Solder
Voltage Rating (AC)	125V
