The QTH-100-01-F-D-DP-A-K connector from Samtec features gold contact plating and a surface mount termination. It has 200 positions and 200 contacts, arranged in 2 rows with a 0.02inch pitch. The connector is packaged in a rail or tube format and has a mated stacking height of 5mm. It is not radiation hardened and is part of the Q Strip QTH series.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec QTH-100-01-F-D-DP-A-K technical specifications.
General
| Contact Plating | Gold |
| Gender | Male |
| Mated Stacking Heights | 5mm |
| Mount | Surface Mount |
| Number of Contacts | 200 |
| Number of Positions | 200 |
| Number of Rows | 2 |
| Packaging | Rail/Tube |
| Pitch | 0.02inch |
| Radiation Hardening | No |
| Series | Q Strip® QTH |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec QTH-100-01-F-D-DP-A-K Datasheet
Download the complete datasheet for Samtec QTH-100-01-F-D-DP-A-K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

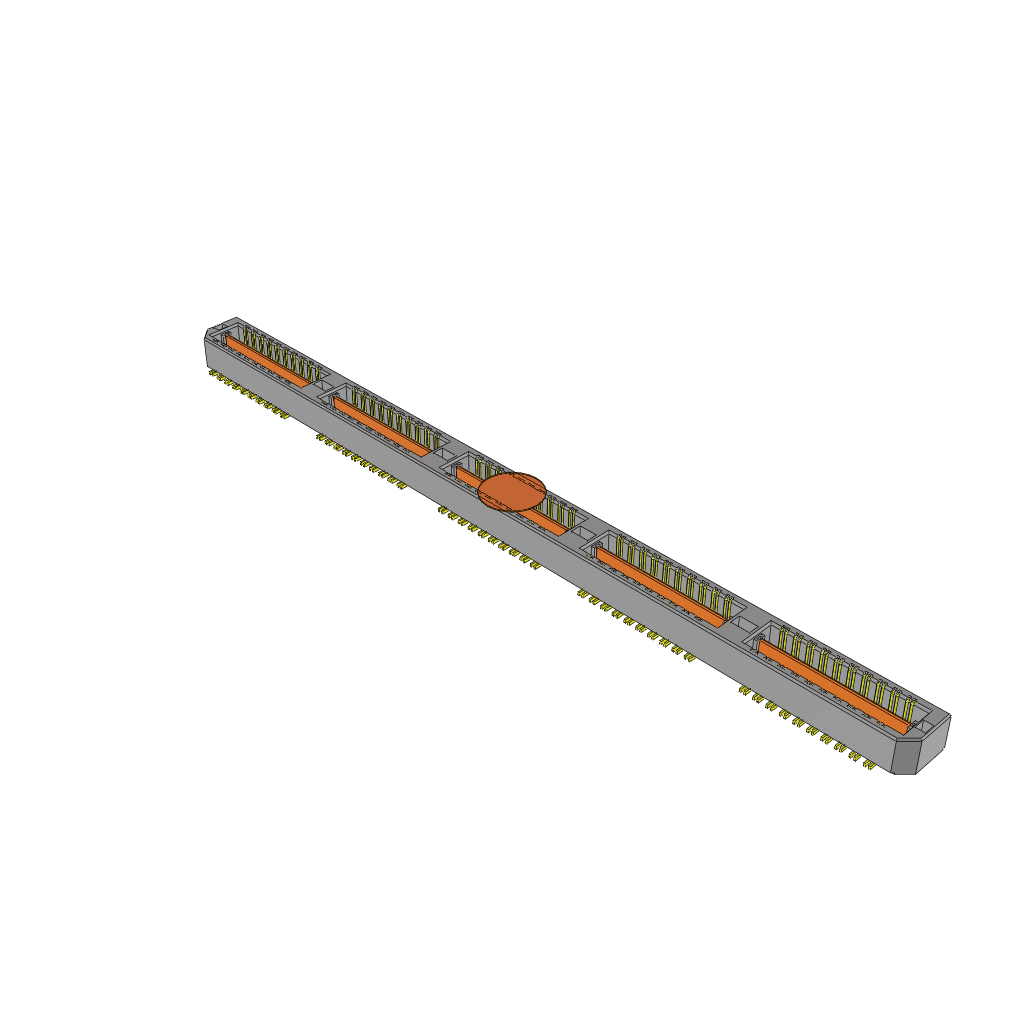

Product Images
