Samtec
QTS-075-02-L-D-RA-WT-LS2

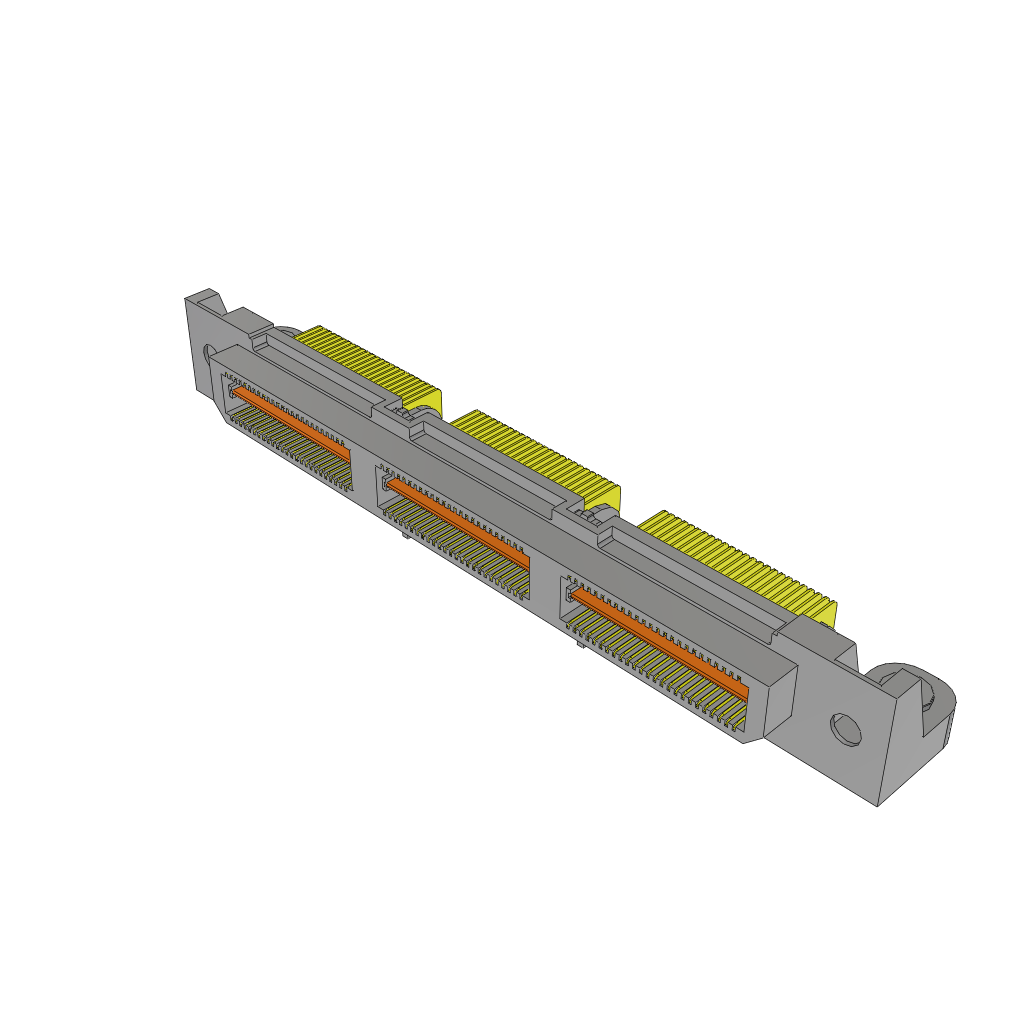

150-Position 2-Row Shrouded Header, Surface Mount, Gold Contact Plating
This 150-position 2-row shrouded header features gold contact plating and is designed for surface mount applications. It is available in a tray packaging and is compliant with RoHS regulations. The header is part of the Q Strip QTS series and is not radiation hardened.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec QTS-075-02-L-D-RA-WT-LS2 technical specifications.
General
| Contact Plating | Gold |
| Gender | Male |
| Mount | Surface Mount |
| Number of Contacts | 150 |
| Number of Positions | 150 |
| Number of Rows | 2 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Q Strip® QTS |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec QTS-075-02-L-D-RA-WT-LS2 Datasheet
Download the complete datasheet for Samtec QTS-075-02-L-D-RA-WT-LS2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
