Technical Specifications
Samtec QTS-100-01-L-D-RA-WT technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 15.37mm |
| Gender | Male |
| Lead Pitch | 0.635mm |
| Length | 94.73mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 275V |
| Number of Contacts | 200 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | QTS |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec QTS-100-01-L-D-RA-WT Datasheet
Download the complete datasheet for Samtec QTS-100-01-L-D-RA-WT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

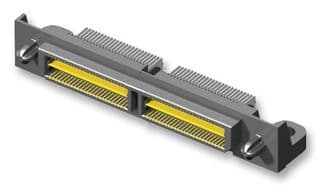

Product Images
