200-position, 10-row male surface mount rectangular connector with a 1.27mm pitch and 1.27mm row spacing. Features copper alloy contacts with gold plating, a 2.7A current rating, and a 240V AC voltage rating. Constructed from liquid crystal polymer with a black housing, this connector offers a 4.6mm height and length, with a 14.7mm width. Designed for 100 mating cycles, it operates within a -55°C to 125°C temperature range and supports a mated stacking height of 10mm. RoHS compliant and lead-free.
Current Rating2.7A
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec SEAM-20-02.0-S-10-2-A technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold
Current Rating
2.7A
Gender
Male
Height
4.6mm
Housing Color
Black
Lead Free
Lead Free
Lead Pitch
1.27mm
Length
4.6mm
Mated Stacking Heights
10mm
Material
Liquid Crystal Polymer
Mating Cycles
100
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
200
Number of Positions
200
Number of Rows
10
Packaging
Tray
Pitch
1.27mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
1.27mm
Series
SEARAY™ SEAM
Termination
Solder
Voltage Rating (AC)
240V
Width
14.7mm
Compliance
RoHS
Compliant
Datasheet
Samtec SEAM-20-02.0-S-10-2-A Datasheet
Download the complete datasheet for Samtec SEAM-20-02.0-S-10-2-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

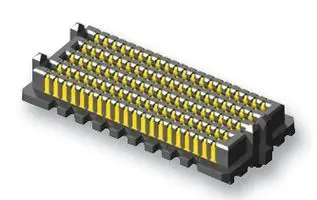

Product Images
