50-position, 2-row socket strip with 1.27mm pitch. Features straight, surface-mount termination with solder contacts. Female socket contacts are made of bronze with gold plating for optimal mating. Operates within a -55°C to 125°C temperature range and has a 350V AC voltage rating. Black polymer insulation and housing.
Quick Jump:
Technical Specifications
Samtec SFC-125-T2-F-D-A-K technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Depth | 4.19mm |
| Gender | Female |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Length | 34.92mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 350V |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| RoHS Compliant | Yes |
| Series | Tiger Eye™ SFC |
| Termination | Solder |
| Voltage Rating (AC) | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SFC-125-T2-F-D-A-K Datasheet
Download the complete datasheet for Samtec SFC-125-T2-F-D-A-K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

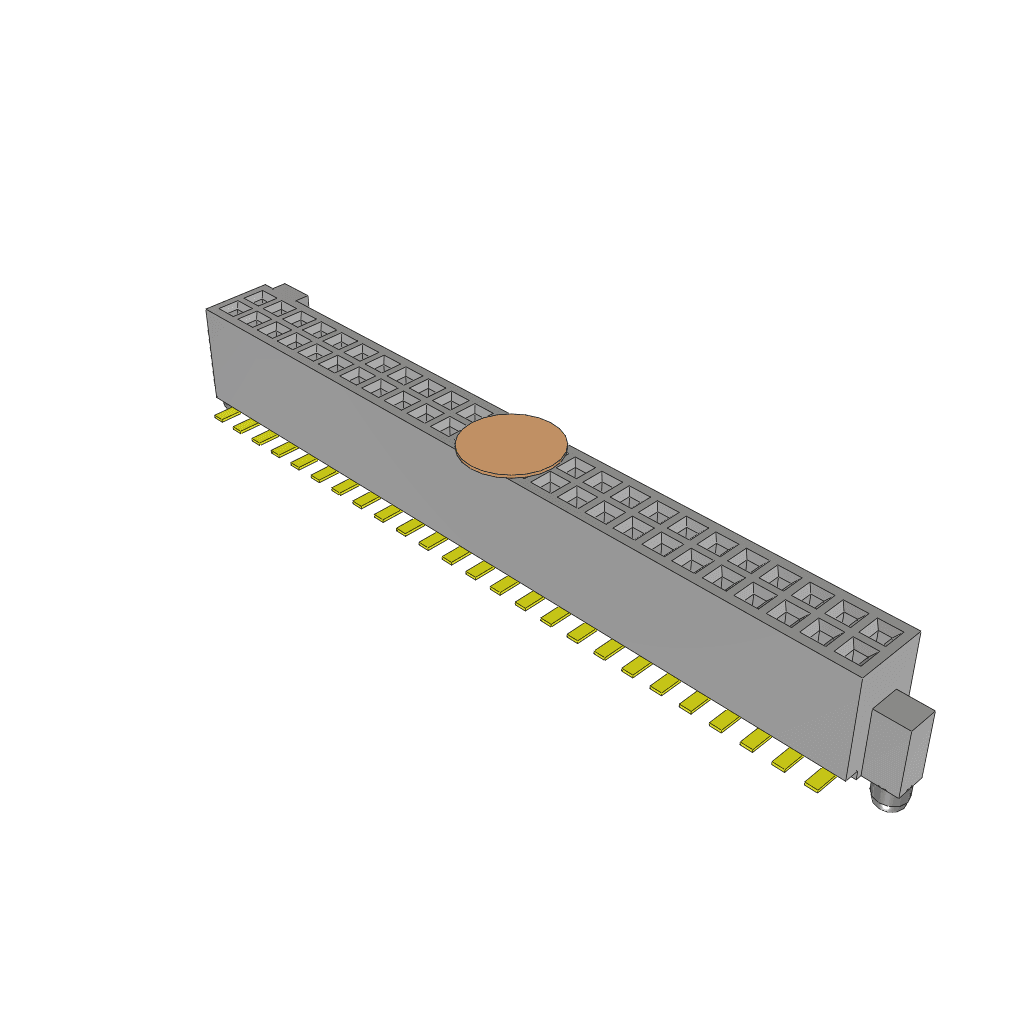

Product Images
