20-position, 2-row shrouded socket strip with 1.27mm pitch for board-to-board applications. Features straight, through-hole mounting with solder termination and a 250V AC voltage rating. Copper contacts with gold plating ensure reliable mating, and the black polymer housing offers a UL94 V-0 flammability rating. Operates across a -55°C to 125°C temperature range with a mated stacking height of 11.63mm.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SFM-110-01-S-D-A technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Depth | 3.68mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Length | 15.87mm |
| Mated Stacking Heights | 11.63mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.05inch |
| Series | Tiger Eye™ SFM |
| Termination | Solder |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SFM-110-01-S-D-A Datasheet
Download the complete datasheet for Samtec SFM-110-01-S-D-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

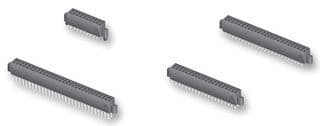

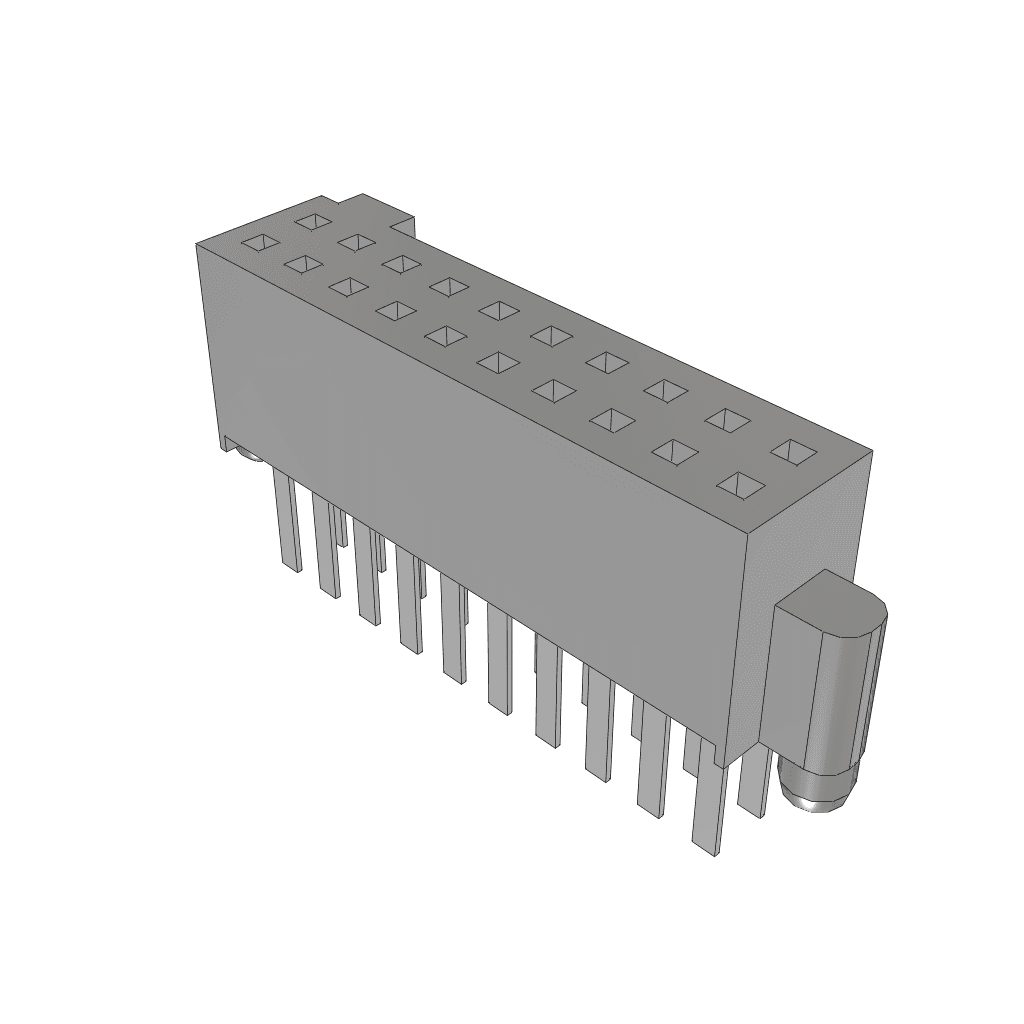

Product Images
