30-position, 2-row shrouded socket strip with 1.27mm pitch. Features gold-plated copper square female socket contacts for reliable mating. Straight orientation with SMD solder termination. Operates from -55°C to 125°C, rated for 250V AC, and meets UL94 V-0 flammability. Black polymer insulation and housing.
Quick Jump:
Technical Specifications
Samtec SFM-115-02-L-D-A-K technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Depth | 3.68mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Length | 22.22mm |
| Mated Stacking Heights | 11.76mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 350V |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Tiger Eye™ SFM |
| Termination | Solder |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SFM-115-02-L-D-A-K Datasheet
Download the complete datasheet for Samtec SFM-115-02-L-D-A-K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

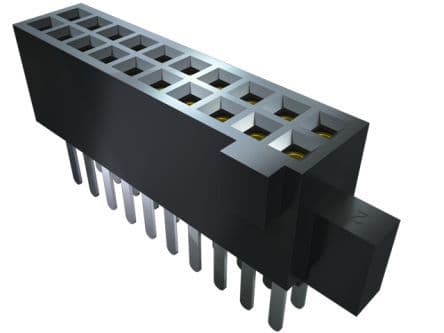

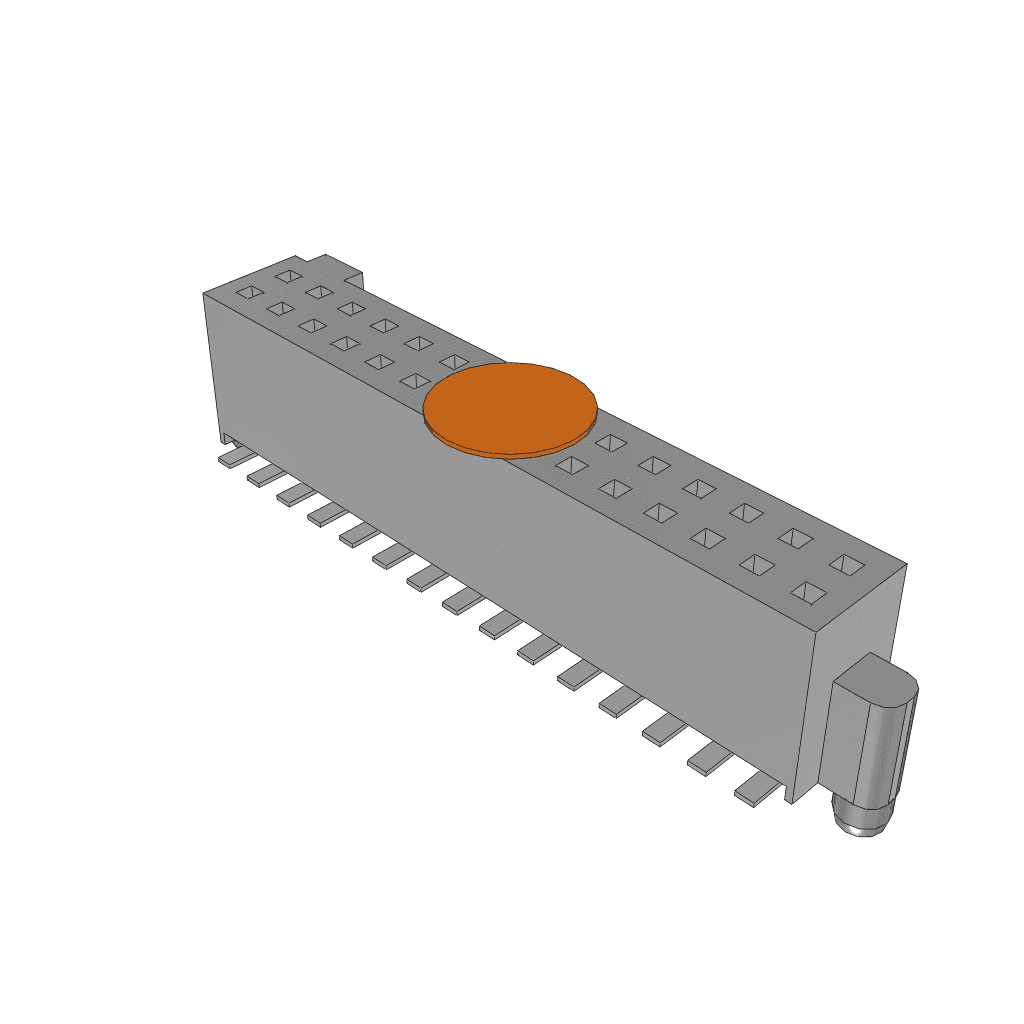

Product Images
