Technical Specifications
Samtec SHF-104-01-L-D-SM technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Flammability Rating
UL94 V-0
Gender
Male
Insulation Color
Black
Insulation Material
Polymer
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
8
Number of Positions
8
Number of Rows
2
Packaging
Rail/Tube
Pitch
1.27mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
SHF
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec SHF-104-01-L-D-SM Datasheet
Download the complete datasheet for Samtec SHF-104-01-L-D-SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

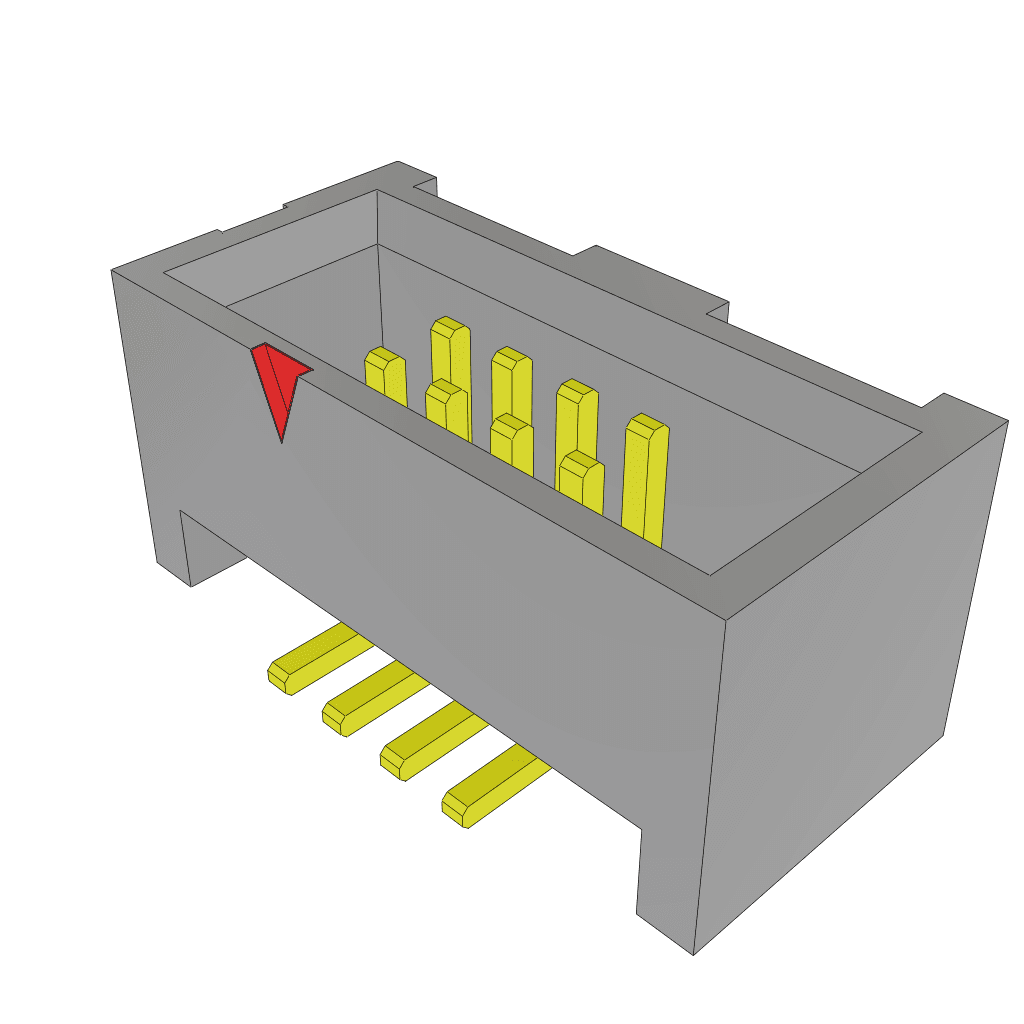

Product Images
