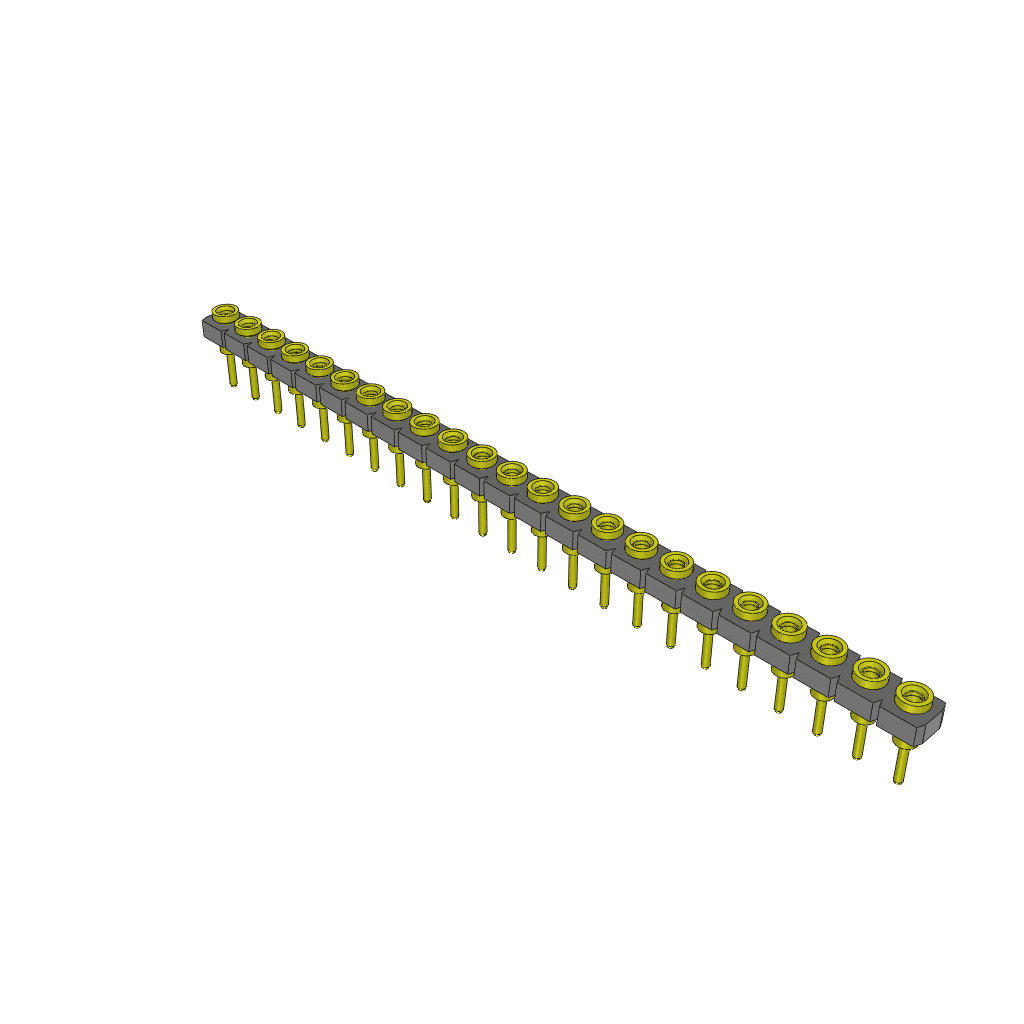

23-position, single-row socket strip with 2.54mm pitch, designed for top entry, through-hole mounting. Features circular female socket contacts made of copper with gold plating for mating surfaces, ensuring reliable connectivity. The black polymer housing and insulation provide durability within a -55°C to 125°C operating temperature range. This lead-free, RoHS-compliant component is supplied in bulk packaging.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SL-123-G-11 technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper
Contact Plating
Gold
Contact Shape
Circular
Contact Type
Female Socket
Gender
Receptacle
Height
1.27mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
58.4mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
23
Number of Positions
23
Number of Rows
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SL
Termination
Solder
Width
2.54mm
Compliance
RoHS
Compliant
Datasheet
Samtec SL-123-G-11 Datasheet
Download the complete datasheet for Samtec SL-123-G-11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
