30-position, 2-row socket strip connector with 2.54mm pitch. Features straight, through-hole mounting and solder termination. Constructed with bronze contacts and gold plating, offering a current rating of 7.1A and a voltage rating of 550V AC. Operating temperature range spans from -55°C to 125°C. RoHS compliant and lead-free.
Voltage Rating550V
Current Rating7.1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SLW-115-01-G-D technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 7.1A |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Max Current Rating | 7.1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 550V |
| Mount | Through Hole |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | SLW |
| Termination | Solder |
| Voltage Rating | 550V |
| Voltage Rating (AC) | 550V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SLW-115-01-G-D Datasheet
Download the complete datasheet for Samtec SLW-115-01-G-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

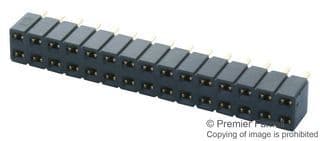

Product Images
