60-position, 2-row shrouded socket strip with 2.54mm pitch. Features straight, through-hole mounting and solder termination. Offers a 3A current rating and 550V voltage rating. Bronze contacts with gold plating ensure reliable mating. Operating temperature range from -55°C to 125°C.
Voltage Rating550V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SLW-130-01-G-D technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating | 3A |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Glass |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Mated Stacking Heights | 6.09mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 60 |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 2.54mm |
| Series | SLW |
| Termination | Solder |
| Voltage Rating | 550V |
| Voltage Rating (AC) | 550V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SLW-130-01-G-D Datasheet
Download the complete datasheet for Samtec SLW-130-01-G-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

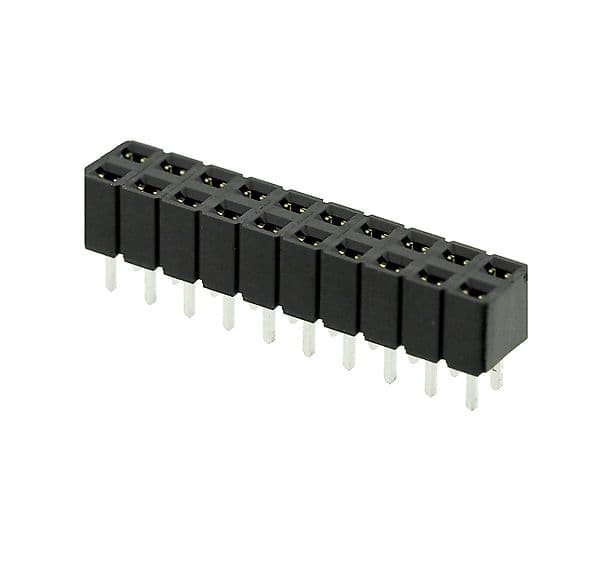

Product Images
