10-position, 1-row, 2mm pitch shrouded socket strip for board-to-board applications. Features straight, top-entry, surface-mount termination with gold-plated copper square female socket contacts. Rated for 350V AC, operating temperature range of -55°C to 125°C, and UL94 V-0 flammability. Black polymer insulation and housing.
Quick Jump:
Technical Specifications
Samtec SMM-110-02-SM-S technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Depth | 4.32mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Length | 20mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 350V |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| RoHS Compliant | Yes |
| Series | Tiger Eye™ SMM |
| Termination | Solder |
| Voltage Rating (AC) | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SMM-110-02-SM-S Datasheet
Download the complete datasheet for Samtec SMM-110-02-SM-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

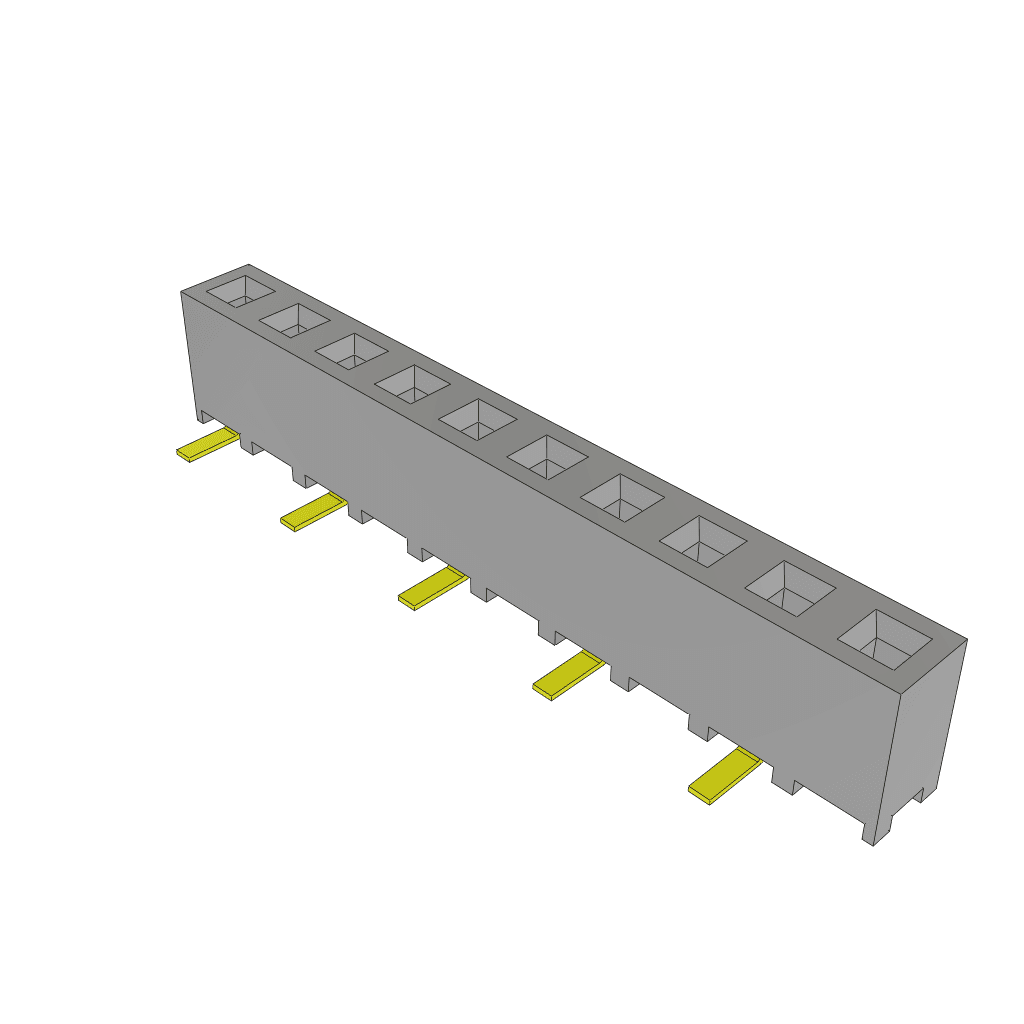

Product Images
