SQT-105-01-L-S

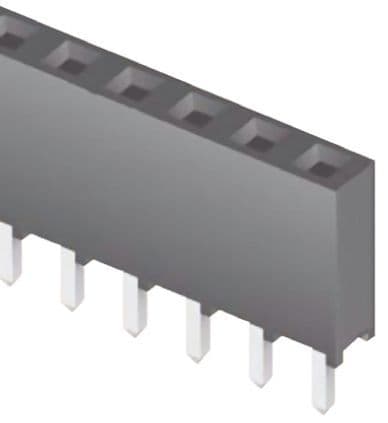

5 Pos 2mm Socket Header, Straight, Thru-Hole, Gold

This 5-position, 1-row socket strip features a 2mm pitch and straight, top-entry orientation for through-hole mounting. Constructed with bronze contacts and gold plating, it offers a 5.1A current rating and 450V voltage rating. The black polymer insulation is UL94 V-0 rated, and the component is RoHS compliant.

Voltage Rating450V

Current Rating5.1A

MountingThrough Hole

Quick Jump:

Technical Specifications

Samtec SQT-105-01-L-S technical specifications.

General

Color	Black
Contact Finish - Mating	GOLD
Contact Material	Bronze
Contact Plating	Gold
Contact Shape	Square
Contact Type	Female Socket
Current Rating	5.1A
Flammability Rating	UL94 V-0
Gender	Receptacle
Insulation Color	Black
Insulation Material	Polymer
Lead Free	Lead Free
Lead Length	2.29mm
Lead Pitch	2mm
Mating Cycles	100
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Contacts	5
Number of Positions	5
Number of Rows	1
Orientation	Straight
Packaging	Bulk
Pitch	2mm
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	SQT
Termination	Solder
Voltage Rating	450V
Voltage Rating (AC)	450V
