Board connector featuring 20 contacts arranged in 2 rows with a 2mm pitch. This female receptacle offers a straight, through-hole mounting orientation with solder termination. Contacts are made of bronze with gold plating for superior conductivity and a square, forked contact shape. Rated for 5.1A current and 450V voltage, it operates within a temperature range of -55°C to 125°C and boasts a UL94 V-0 flammability rating. The black polymer insulator ensures durability and is RoHS compliant.
Voltage Rating450V
Current Rating5.1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SQT-110-01-L-D technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating | 5.1A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SQT |
| Termination | Solder |
| Voltage Rating | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SQT-110-01-L-D Datasheet
Download the complete datasheet for Samtec SQT-110-01-L-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

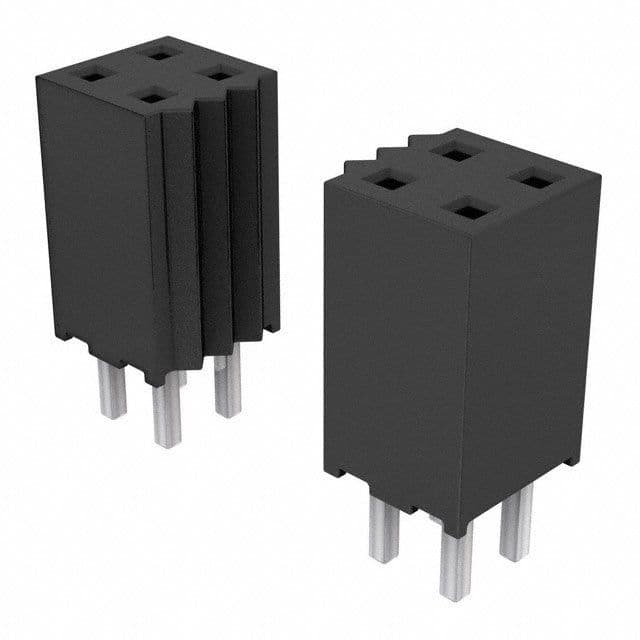

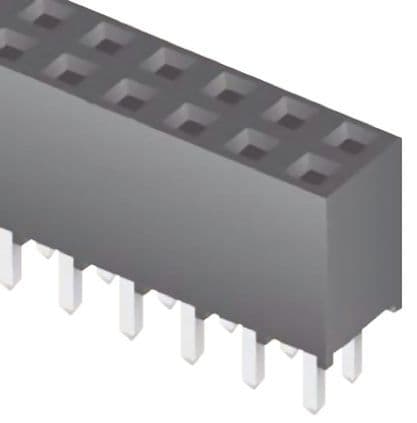

Product Images
