2mm pitch, 26-position, 2-row socket strip connector with vertical, top-entry orientation. Features forked, square bronze contacts with gold plating for mating and a 5.1A current rating. Insulated with black UL94 V-0 rated polymer, this female connector offers a wide operating temperature range of -55°C to 125°C and a 450V AC voltage rating. Through-hole mounting with solder termination, it is lead-free and RoHS compliant.
Current Rating5.1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SQT-113-01-L-D technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Forked
Current Rating
5.1A
Flammability Rating
UL94 V-0
Gender
Female
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Max Current Rating
5.5A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
450V
Mount
Through Hole
Number of Contacts
26
Number of Positions
26
Number of Rows
2
Orientation
Vertical
Packaging
Bulk
Pitch
2mm
RoHS Compliant
Yes
Series
SQT
Termination
Solder
Voltage Rating (AC)
450V
Compliance
RoHS
Compliant
Datasheet
Samtec SQT-113-01-L-D Datasheet
Download the complete datasheet for Samtec SQT-113-01-L-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

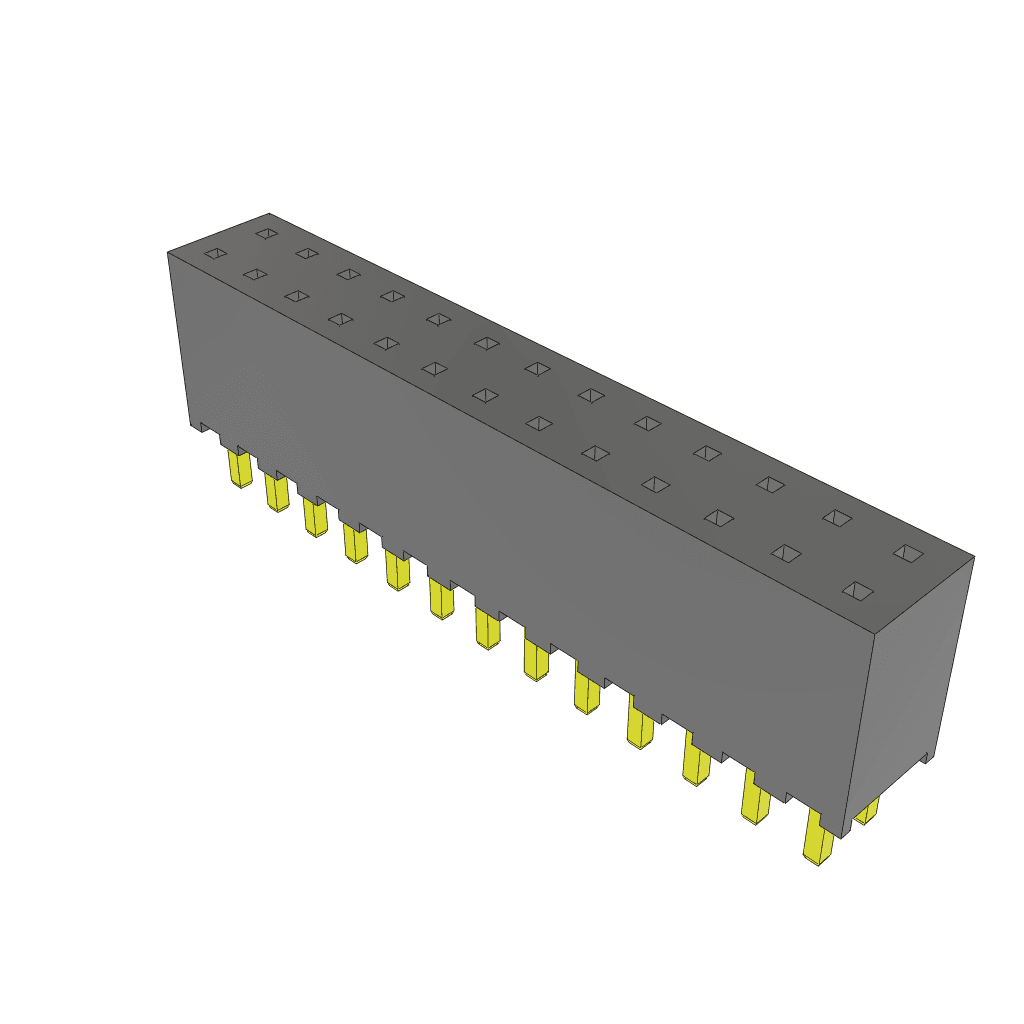

Product Images
