13-position, single-row socket strip with a 2.54mm pitch. Features female socket contacts made of copper with gold plating for mating, and a PBT insulation material in black. This straight, top-entry, through-hole component has a maximum current rating of 1A and operates between -55°C and 125°C. Lead-free and RoHS compliant, it is supplied in bulk packaging.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SS-113-G-2 technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper
Contact Plating
Gold
Contact Shape
Circular
Contact Type
Female Socket
Depth
2.54mm
Gender
Female
Housing Color
Black
Insulation Color
Black
Insulation Material
PBT
Lead Free
Lead Free
Length
33.02mm
Max Current Rating
1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
13
Number of Positions
13
Number of Rows
1
Orientation
Straight
Packaging
Bulk
Pitch
2.54mm
RoHS Compliant
Yes
Series
SS
Termination
Solder
Width
2.54mm
Compliance
RoHS
Compliant
Datasheet
Samtec SS-113-G-2 Datasheet
Download the complete datasheet for Samtec SS-113-G-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

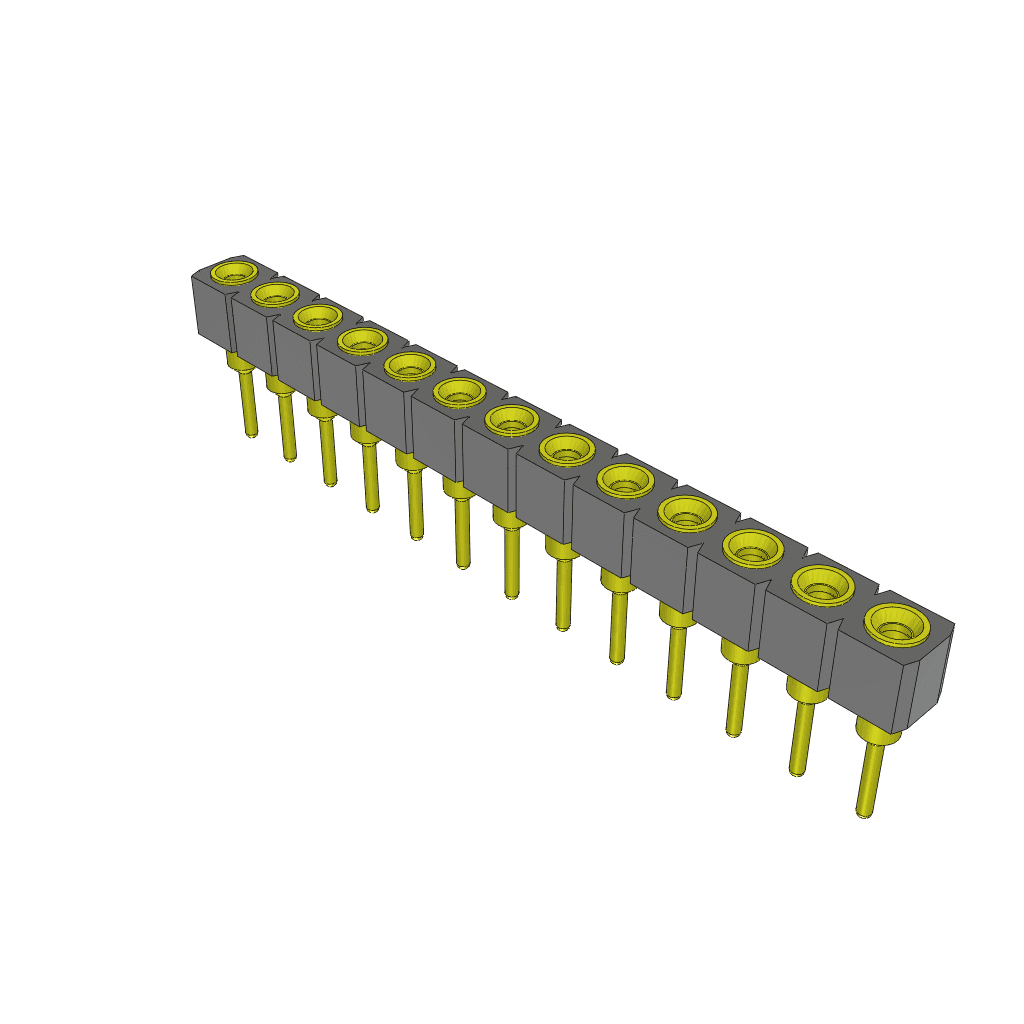

Product Images
