This 21-position female header is designed for through-hole mounting and features a maximum current rating of 1A. It operates within a temperature range of -55°C to 125°C and is compliant with RoHS regulations. The header is constructed with copper contacts plated with gold and has a black housing color.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SS-121-G-2 technical specifications.
General
| Color | Black |
| Contact Material | Copper |
| Contact Plating | Gold |
| Gender | Female |
| Height | 2.54mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 53.3mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 21 |
| Number of Positions | 21 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 0.1inch |
| RoHS Compliant | Yes |
| Series | SS |
| Termination | Solder |
| Width | 2.54mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SS-121-G-2 Datasheet
Download the complete datasheet for Samtec SS-121-G-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

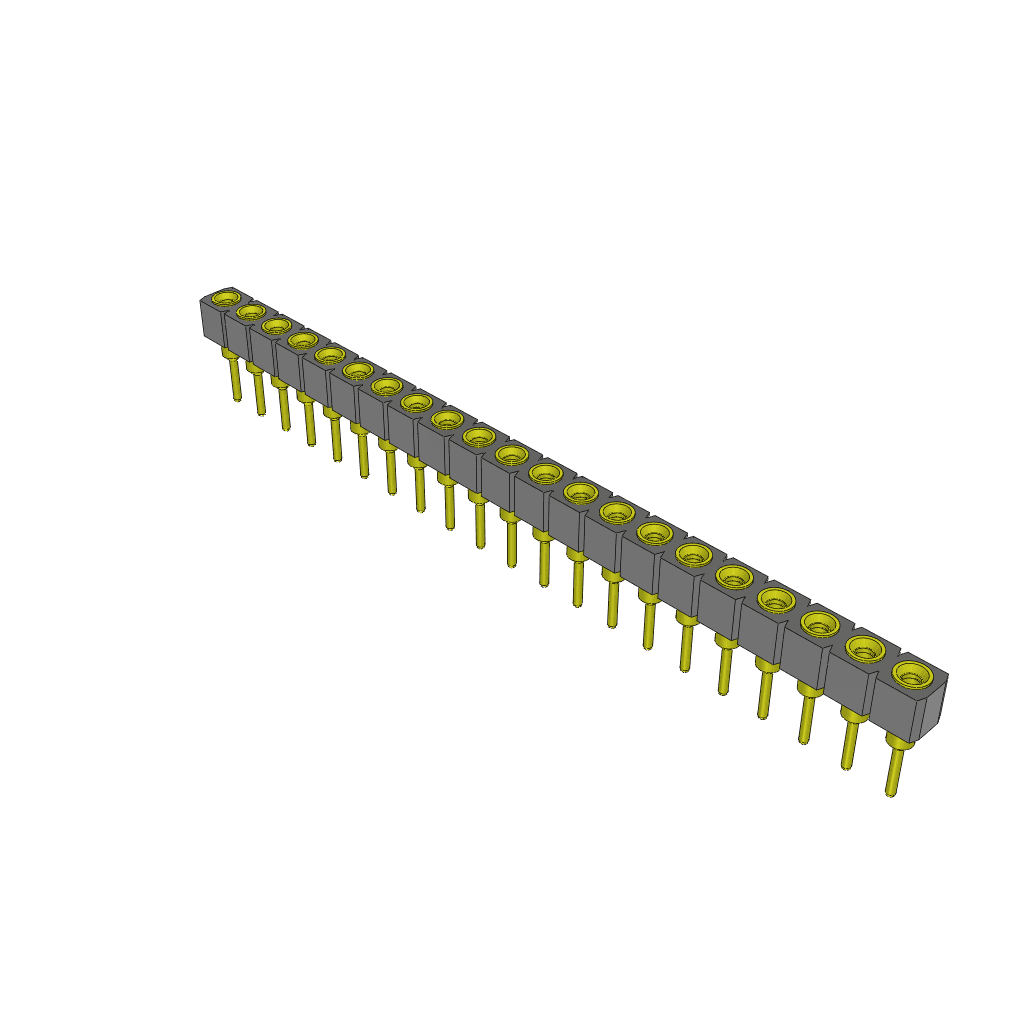

Product Images
