Samtec SSM-110-S-SV-P technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Depth
2.54mm
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
25.4mm
Max Current Rating
6.9A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
475V
Number of Contacts
10
Number of Rows
1
Orientation
Straight
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec SSM-110-S-SV-P Datasheet
Download the complete datasheet for Samtec SSM-110-S-SV-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

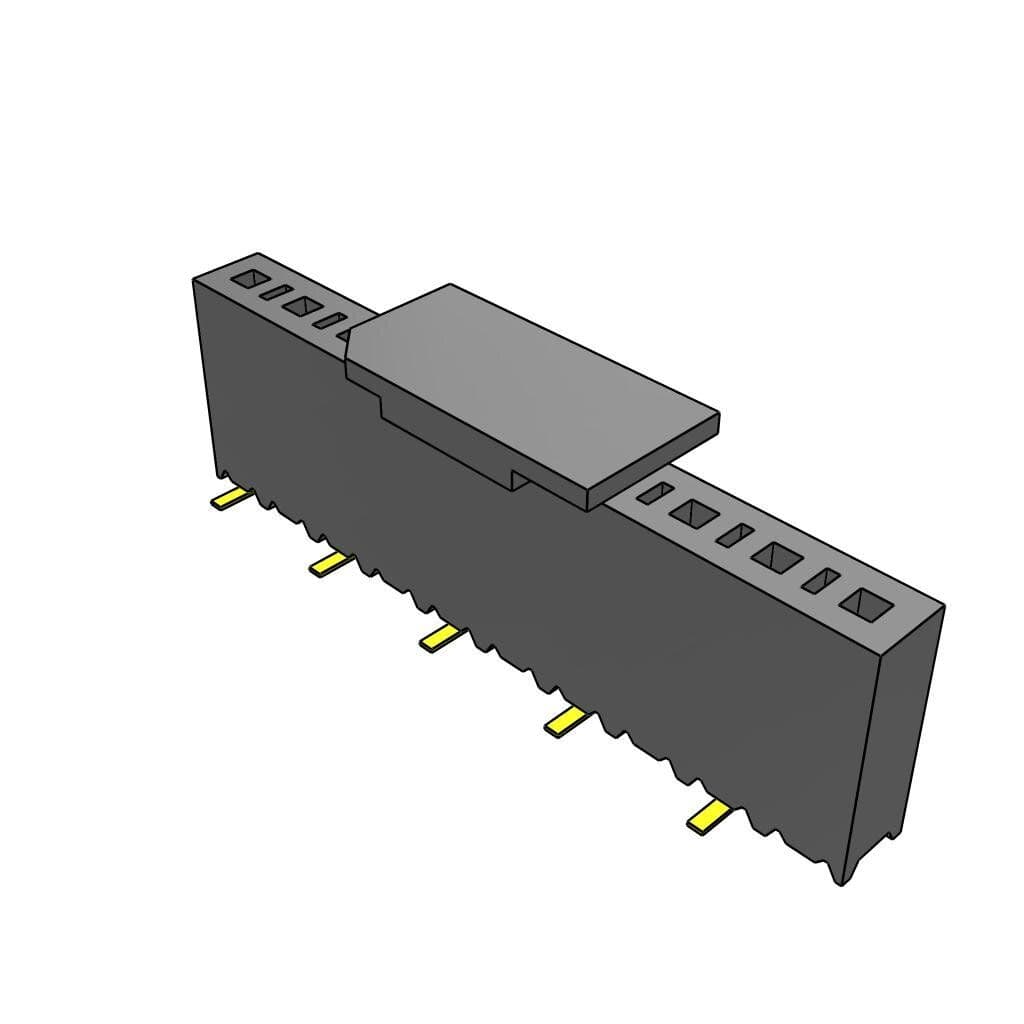

Product Images
