60-position, 2-row shrouded socket strip with 2.54mm pitch. Features female socket contacts made of bronze with gold plating, rated for 3A current and 475V AC. Surface mount design with straight, top entry orientation and solder termination. Operating temperature range from -55°C to 125°C. Black housing, lead-free, and RoHS compliant.
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec SSM-130-L-DV technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Depth | 5.08mm |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Length | 76.2mm |
| Max Current Rating | 6.9A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 475V |
| Mount | Surface Mount |
| Number of Contacts | 60 |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | SSM |
| Termination | Solder |
| Voltage Rating (AC) | 475V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSM-130-L-DV Datasheet
Download the complete datasheet for Samtec SSM-130-L-DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

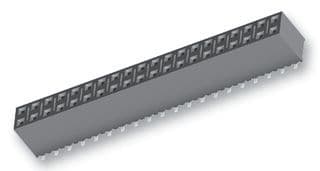

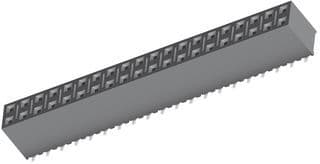

Product Images
