64-position, 2-row shrouded socket strip with 2.54mm pitch. Features gold-plated bronze female socket contacts with a square shape for reliable mating. Surface mount termination with a straight orientation, designed for top entry. Operates within a temperature range of -55°C to 125°C, with a maximum AC voltage rating of 475V and DC rated voltage of 572V. Housing and insulation are black polymer, and the component is lead-free and RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec SSM-132-S-DV technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Depth | 7.04mm |
| Gender | Female |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Length | 81.28mm |
| Max Current Rating | 6.9A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 475V |
| Mount | Surface Mount |
| Number of Contacts | 64 |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | SSM |
| Termination | Solder |
| Voltage Rating (AC) | 405V |
| DC Rated Voltage | 572V |
| Width | 5.08mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSM-132-S-DV Datasheet
Download the complete datasheet for Samtec SSM-132-S-DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

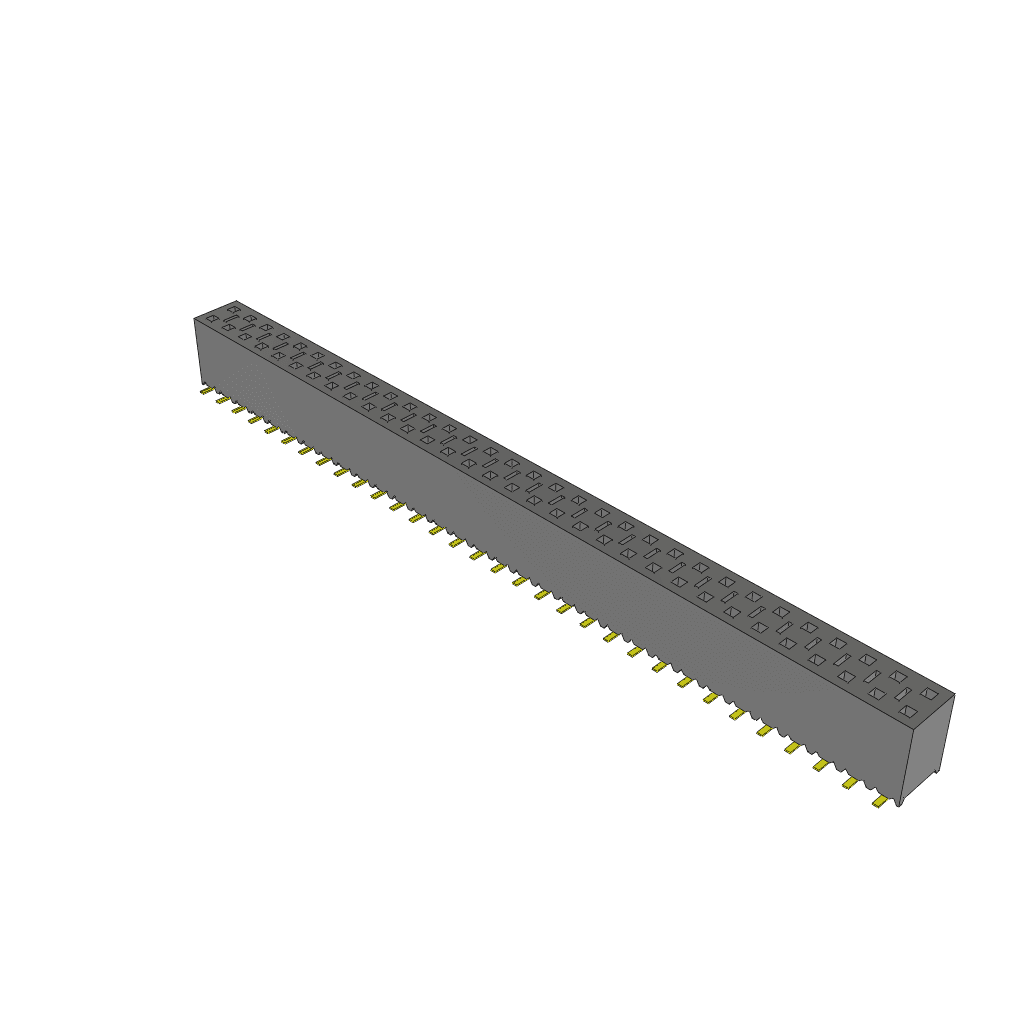

Product Images
