Technical Specifications
Samtec SSW-113-01-T-T technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Gender | Receptacle |
| Mating Cycles | 100 |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 39 |
| Number of Rows | 3 |
| Orientation | Vertical |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSW-113-01-T-T Datasheet
Download the complete datasheet for Samtec SSW-113-01-T-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

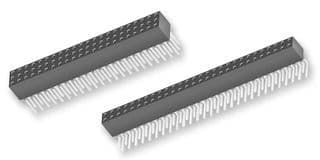

Product Images
