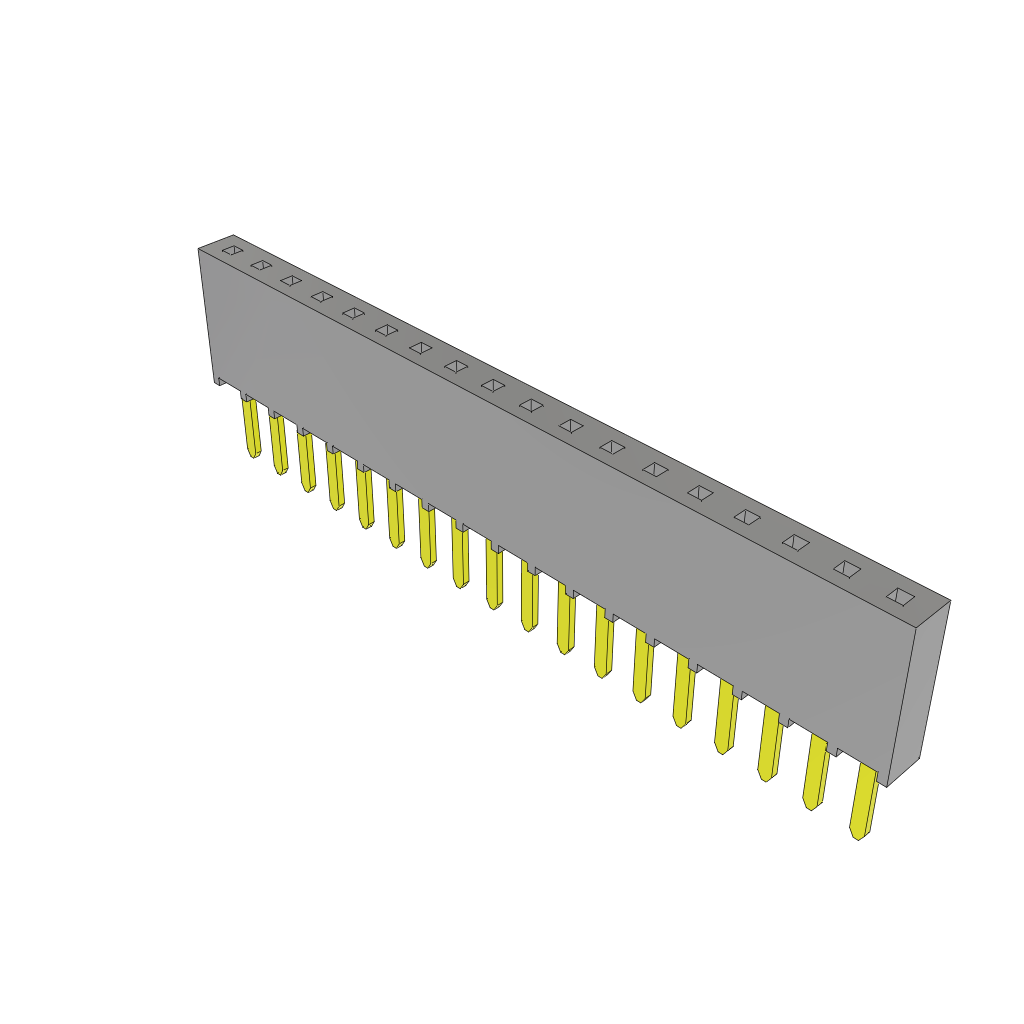

18-position, single-row socket strip with 2.54mm pitch. Features straight, top-entry orientation for through-hole mounting. Bronze contacts with gold plating ensure reliable mating, supporting a 6.9A current rating and 100 mating cycles. Black polymer housing and insulation meet UL94 V-0 flammability standards. Operating temperature range from -55°C to 125°C.
Voltage Rating550V
Current Rating6.9A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SSW-118-02-G-S technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating | 6.9A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Mating Cycles | 100 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SSW |
| Termination | Solder |
| Voltage Rating | 550V |
Compliance
| RoHS | Compliant |
