Samtec
SSW-123-01-G-D
46-Position Shrouded Header, 0.1inch Pitch, Through Hole Mount, 100 Mating Cycles
This 46-position shrouded header features a 0.1inch pitch and is designed for through hole mount. It is constructed with bronze contacts plated with gold and is lead free. The header is compliant with RoHS regulations and has a maximum of 100 mating cycles.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SSW-123-01-G-D technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Mating Cycles | 100 |
| Mount | Through Hole |
| Number of Contacts | 46 |
| Number of Positions | 46 |
| Number of Rows | 2 |
| Packaging | Bulk |
| Pitch | 0.1inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | SSW |
| Termination | Solder |
| Width | 4.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSW-123-01-G-D Datasheet
Download the complete datasheet for Samtec SSW-123-01-G-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

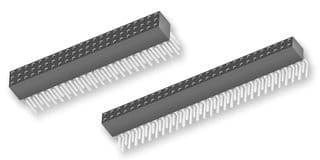

Product Images
