2.54mm pitch, single-row, 28-position socket strip receptacle with top entry, through-hole mounting and solder termination. Features tin-plated bronze, forked square contacts and a black polymer insulation material. Rated for 100 mating cycles, UL94 V-0 flammability, and operates from -55°C to 105°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SSW-128-01-T-S technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Bronze
Contact Plating
Tin
Contact Shape
Square
Contact Type
Forked
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
8.51mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
71.6mm
Mating Cycles
100
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
28
Number of Positions
28
Number of Rows
1
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SSW
Termination
Solder
Width
2.41mm
Compliance
RoHS
Compliant
Datasheet
Samtec SSW-128-01-T-S Datasheet
Download the complete datasheet for Samtec SSW-128-01-T-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

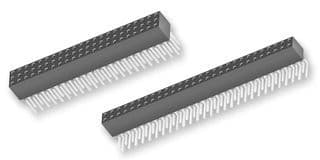

Product Images
