Technical Specifications

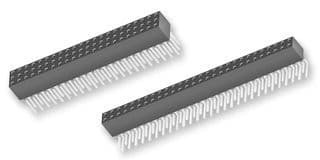

Samtec SSW-142-01-T-T technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Forked |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 126 |
| Number of Positions | 126 |
| Number of Rows | 3 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SSW |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSW-142-01-T-T Datasheet
Download the complete datasheet for Samtec SSW-142-01-T-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
