Technical Specifications
Samtec TCSD-10-01 technical specifications.
General
Color
Black
Contact Material
Copper
Contact Plating
Gold
Contact Type
Female Socket
Depth
4mm
Gender
Female
Housing Color
Black
Length
24mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Number of Contacts
20
Number of Positions
20
Number of Rows
2
Orientation
Right Angle
Packaging
Rail/Tube
Pitch
2mm
RoHS Compliant
Yes
Series
Tiger Eye™ TCSD
Termination
IDT
Wire/Cable Gauge
28AWG
Wire/Cable Type
Ribbon
Compliance
RoHS
Compliant
Datasheet
Samtec TCSD-10-01 Datasheet
Download the complete datasheet for Samtec TCSD-10-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

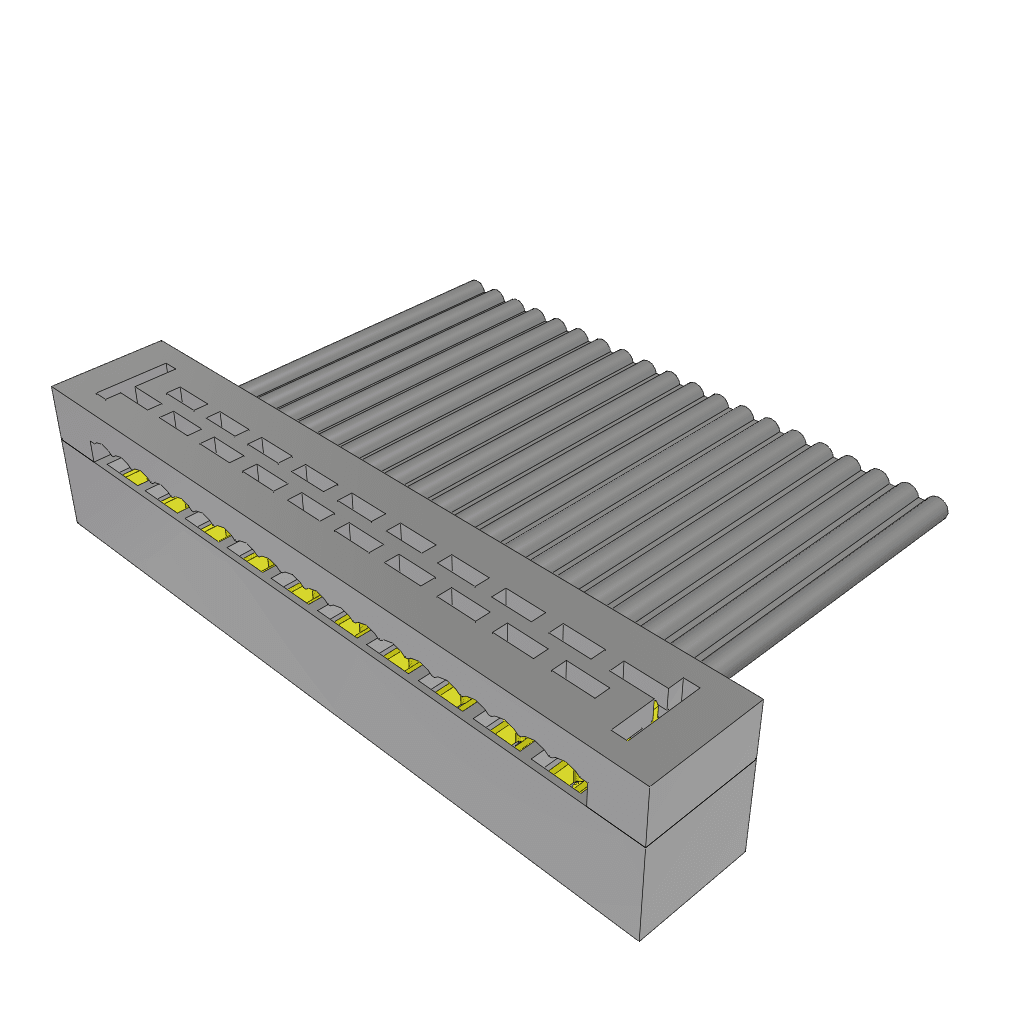

Product Images
