Technical Specifications

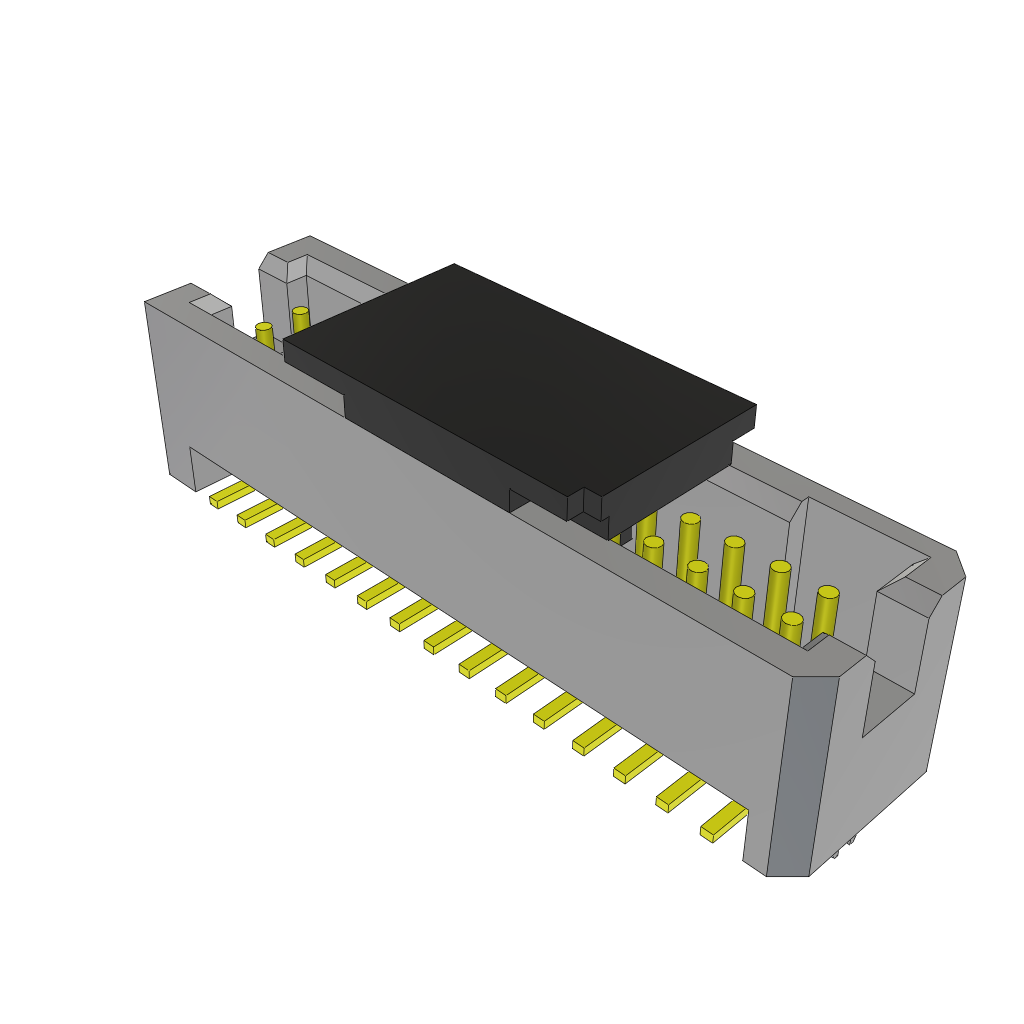

Samtec TFML-115-02-STL-D-LC-P-TR technical specifications.
General
| Type | Shrouded Header |
| Gender | HDR |
| Number of Contacts | 30 |
| Terminal Pitch | 1.27mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Surface Mount |
| Polarization Type | Dual Slot |
| Max Current Rating | 3.2/ContactA |
| Max Voltage Rating | 250VAC |
| Height | 5.72mm |
Compliance
| RoHS | No |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec TFML-115-02-STL-D-LC-P-TR Datasheet
Download the complete datasheet for Samtec TFML-115-02-STL-D-LC-P-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
