40-position, 2-row, 2mm pitch shrouded socket strip for board-to-board applications. Features straight, bottom entry, surface mount termination with gold-plated bronze female socket contacts. Insulation material is black polymer, with a black housing. Operating temperature range is -55°C to 125°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec TLE-120-01-G-DV technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Depth
4mm
Gender
Receptacle
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
40mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
40
Number of Positions
40
Number of Rows
2
Orientation
Straight
Packaging
Bulk
Pitch
2mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TLE
Termination
Solder
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Samtec TLE-120-01-G-DV Datasheet
Download the complete datasheet for Samtec TLE-120-01-G-DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

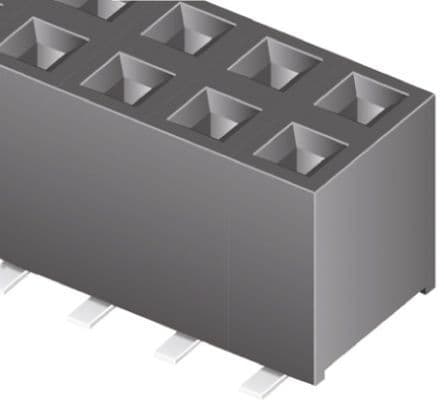

Product Images
