Technical Specifications
Samtec TOLC-135-12-S-Q technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Mating Length | 0.1inch |
| Contact Plating | Gold |
| Gender | Male |
| Height | 7.24mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 47mm |
| Mount | Surface Mount |
| Number of Contacts | 140 |
| Number of Positions | 140 |
| Number of Rows | 4 |
| Packaging | Rail/Tube |
| Pitch | 0.05inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.05inch |
| Series | FOURRAY™ TOLC |
| Termination | Solder |
| Width | 8.13mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TOLC-135-12-S-Q Datasheet
Download the complete datasheet for Samtec TOLC-135-12-S-Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

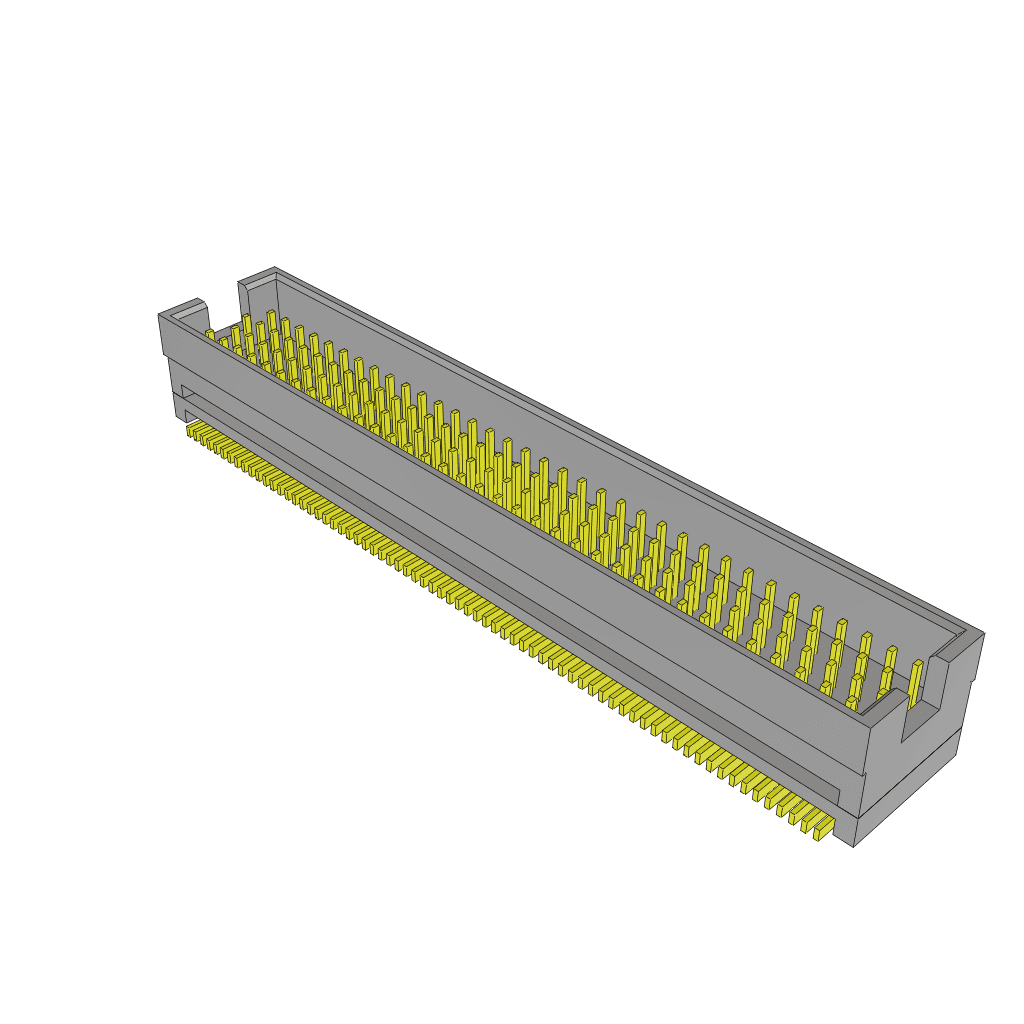

Product Images
