Unshrouded header with 7 positions and 1 row, featuring a 2.54mm pitch. This straight, male connector offers through-hole mounting with solder termination. Constructed with bronze contacts plated in gold, it supports a 1A current rating and operates within a -55°C to 125°C temperature range. The black housing is lead-free and RoHS compliant.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TS-107-G-A technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Mating Length
0.166inch
Contact Plating
Gold
Current Rating
1A
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Lead Pitch
2.54mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
7
Number of Positions
7
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TS
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec TS-107-G-A Datasheet
Download the complete datasheet for Samtec TS-107-G-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

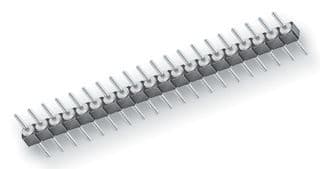

Product Images
