Unshrouded header with 10 positions and 1 row, featuring a 2.54mm pitch. This male connector offers straight, top-entry orientation with solder termination and through-hole mounting. Constructed with brass contacts plated in tin, it supports a maximum current rating of 1A and operates within a temperature range of -55°C to 105°C. The black housing is lead-free and RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TS-110-T-A technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Mating Length | 0.166inch |
| Contact Plating | Tin |
| Depth | 2.54mm |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 25.4mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TS |
| Termination | Solder |
| Width | 2.54mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TS-110-T-A Datasheet
Download the complete datasheet for Samtec TS-110-T-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

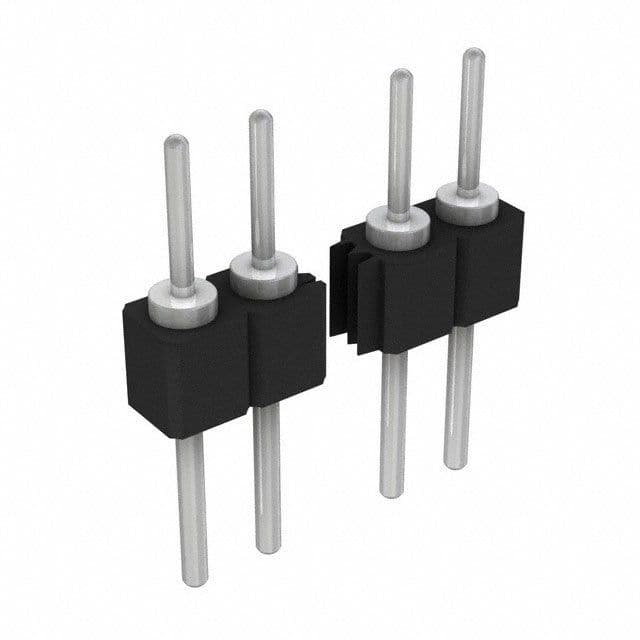

Product Images
