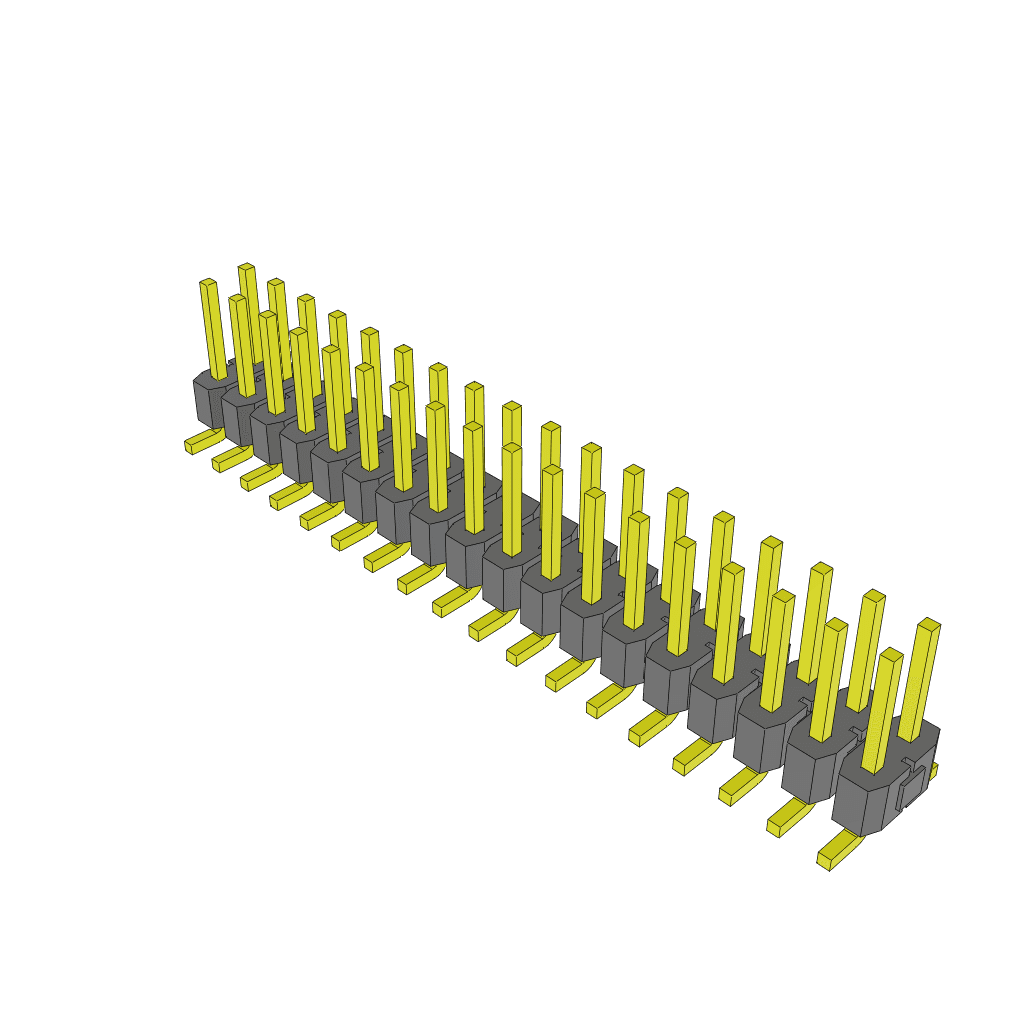

Unshrouded header with 36 positions and 2 rows, featuring a 2.54mm pitch. Male pin contacts made of bronze with gold plating ensure reliable mating. This surface mount component offers a straight, top-entry orientation and a solder termination. Rated for 7A current and 475V, it operates within a -55°C to 125°C temperature range and boasts UL94 V-0 flammability.
Voltage Rating475V
Current Rating7A
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec TSM-118-01-L-DV technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 7A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 36 |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TSM |
| Termination | Solder |
| Voltage Rating | 475V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TSM-118-01-L-DV Datasheet
Download the complete datasheet for Samtec TSM-118-01-L-DV to view detailed technical specifications.
