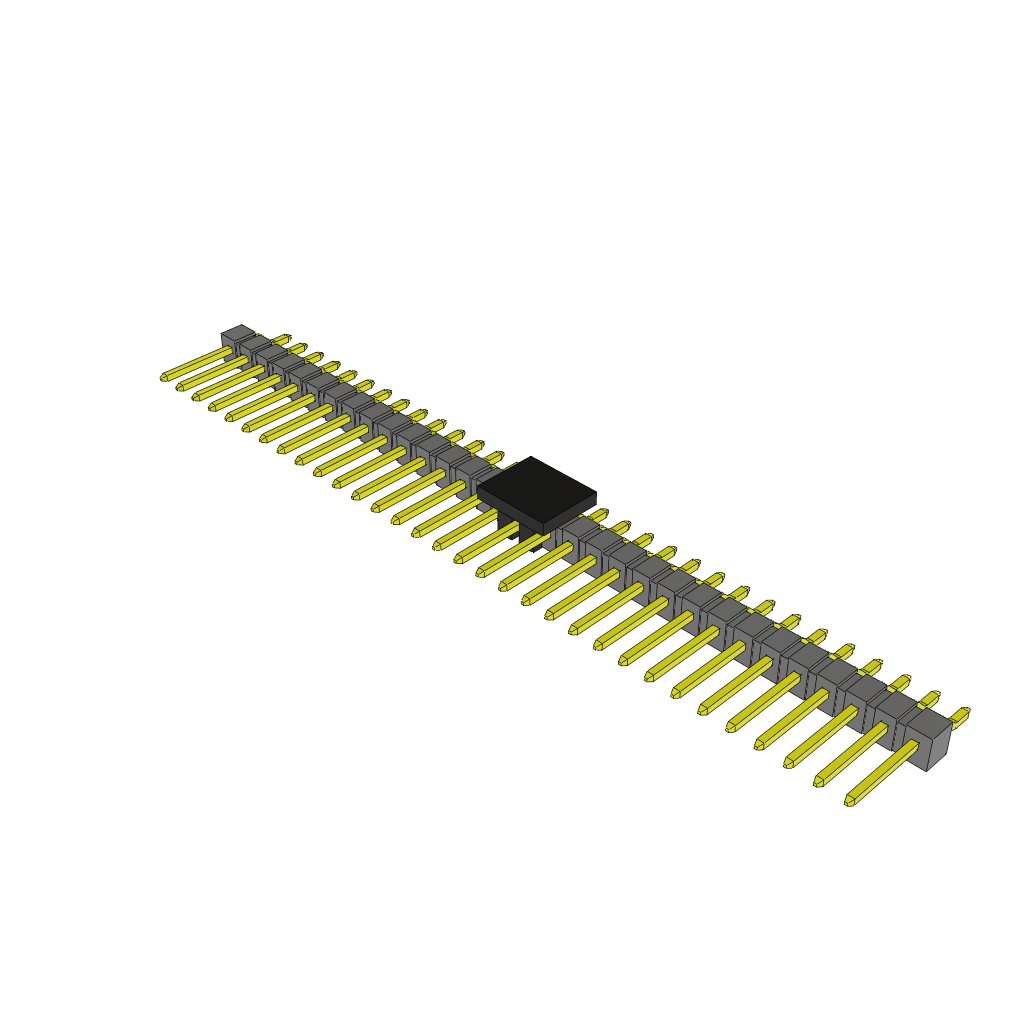

The TSM-132-02-S-SH-P is a 32-contact unshrouded header from Samtec, designed for surface mount applications. It features a right-angle body orientation and a terminal pitch of 2.54mm. This header is rated for a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It can withstand a maximum voltage rating of 475VAC and a maximum current rating of 5.4A per contact. The header measures 3.05mm in height and has a mating length of 8.13mm.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec TSM-132-02-S-SH-P technical specifications.
General
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 32 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Right Angle |
| Mounting | Surface Mount |
| Max Current Rating | 5.4/ContactA |
| Max Voltage Rating | 475VAC |
| Height | 3.05mm |
| Mating Length | 8.13mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec TSM-132-02-S-SH-P Datasheet
Download the complete datasheet for Samtec TSM-132-02-S-SH-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
