Technical Specifications

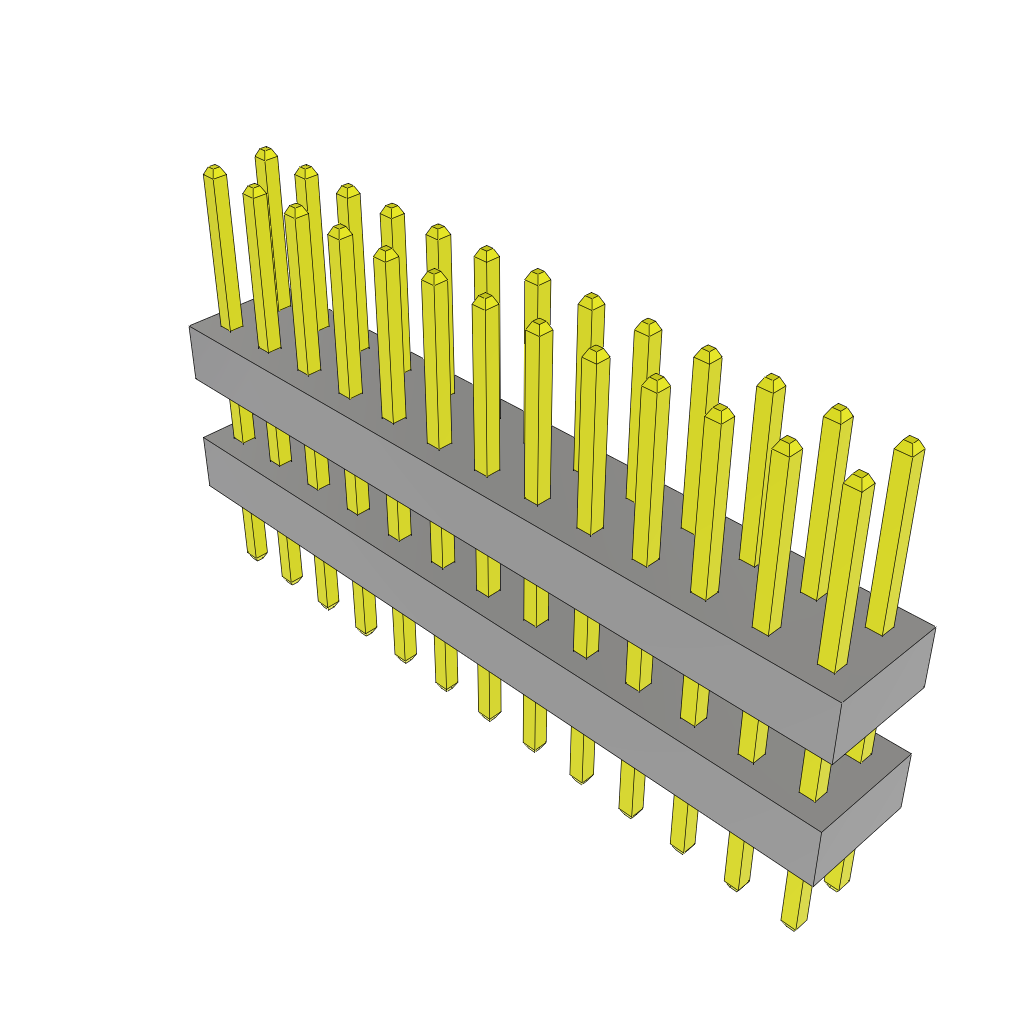

Samtec TW-13-05-L-D-250-125 technical specifications.
General
| Type | Board Stacker |
| Gender | HDR |
| Number of Contacts | 26 |
| Terminal Pitch | 2mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 5.2/ContactA |
| Height | 11.93mm |
| Mating Length | 5.58mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec TW-13-05-L-D-250-125 Datasheet
Download the complete datasheet for Samtec TW-13-05-L-D-250-125 to view detailed technical specifications.
No datasheet is available for this part.
