Samtec
USB-A-S-F-B-SM2
Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Receptacle, ROHS COMPLIANT
MountingSurface Mount, Horizontal
Quick Jump:
Technical Specifications
Samtec USB-A-S-F-B-SM2 technical specifications.
General
Contact Plating
Gold
Flammability Rating
UL94 V-0
Gender
Receptacle
Insulation Color
Black
Mating Cycles
1500
Max Operating Temperature
85°C
Min Operating Temperature
-50°C
Mount
Surface Mount, Horizontal
Number of Contacts
4
Number of Ports
1
Orientation
Right Angle
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
USB-A
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec USB-A-S-F-B-SM2 Datasheet
Download the complete datasheet for Samtec USB-A-S-F-B-SM2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

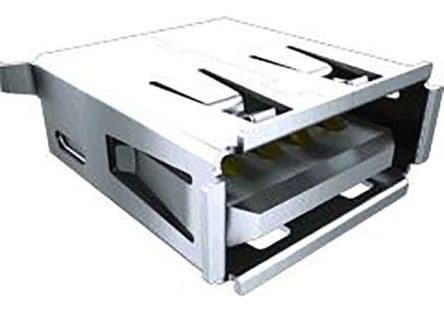

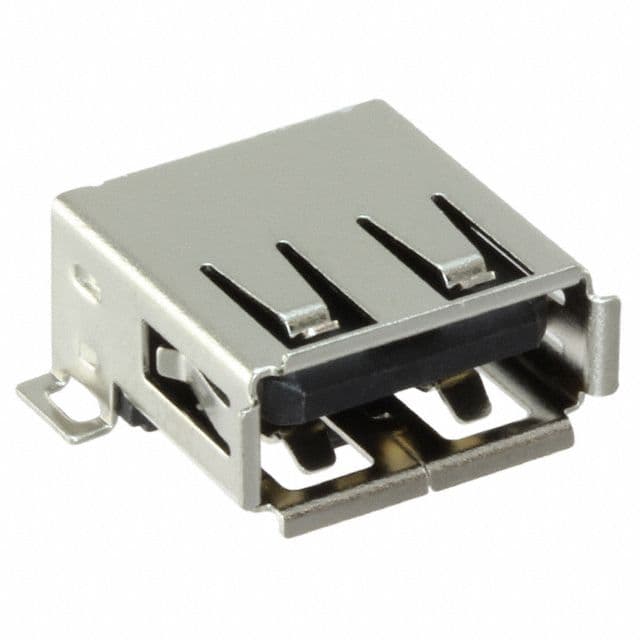

Product Images
