General purpose AC power entry module with 6A current rating and 250V AC voltage rating. Features 3 contacts, male gender, and Faston termination. Panel mountable with flanges and screws, offering straight orientation. Operating frequency range of 50 to 400 Hz, with a maximum operating temperature of 85°C. Includes fuse and IP40 rating.
Frequency50 to 400 Hz
PackageModule
Current6A
Resistance1MR
Quick Jump:
Technical Specifications
Schaffner FN394-6-05-11 technical specifications.
General
| Package/Case | Module |
| Current | 6A |
| Current Rating | 6A |
| Depth | 90mm |
| Filter Type | GENERAL PURPOSE |
| Flammability Rating | UL94 V-2 |
| Fuse | Yes |
| Gender | Male |
| Inductance | 450uH |
| Length | 50mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Flanges, Screw |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Operating Frequency | 50 to 400 Hz |
| Orientation | Straight |
| Package Quantity | 20 |
| Packaging | Tray |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| Resistance | 1MR |
| RoHS Compliant | Yes |
| Series | FN 390 |
| Termination | Faston |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN394-6-05-11 Datasheet
Download the complete datasheet for Schaffner FN394-6-05-11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

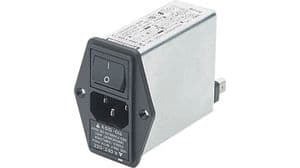

Product Images
