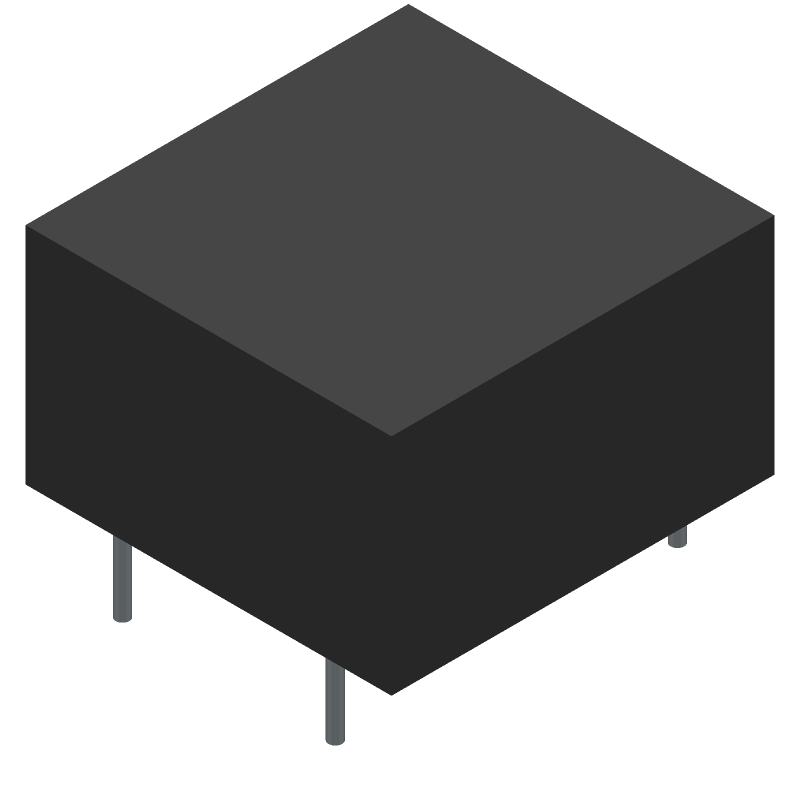

Dual common mode choke for power and signal lines, featuring 10mH inductance per winding at 10kHz. Rated for 1.2A DC current with a maximum DC resistance of 200mΩ. Designed for through-hole mounting with a 20.1mm lead pitch and radial termination. Operates across a wide temperature range from -40°C to 125°C, with a voltage rating of 250V AC/DC. UL94 V-0 flammability rating ensures safety.
Current Rating1.2A
MountingThrough Hole
Inductance10mH
Quick Jump:
Technical Specifications
Schaffner RN114-1.2-02 technical specifications.
General
Current Rating
1.2A
DC Current
1.2A
DC Resistance (DCR)
200mR
Depth
21.8mm
Flammability Rating
UL94 V-0
Height
13.5mm
Inductance
10mH
Lead Pitch
20.1mm
Lead/Base Style
Pin
Length
22.8mm
Max Current Rating
1.2A
Max DC Current
1.2A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Lines
2
Package Quantity
25
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
1kHz
Series
RN
Shielding
Unshielded
Termination
Radial
Test Frequency
10kHz
Tolerance
50%
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Width
21.5mm
Compliance
RoHS
Compliant
Datasheet
Schaffner RN114-1.2-02 Datasheet
Download the complete datasheet for Schaffner RN114-1.2-02 to view detailed technical specifications.
No datasheet is available for this part.
