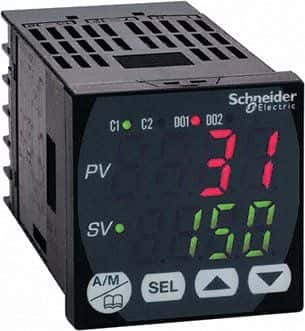

The Zelio REG Series 100mm panel mount PID controller is designed for industrial automation and control applications. It features a segment display and a single input and output, with a relay output type. The controller operates within a temperature range of -10°C to 50°C and is rated for use with supply voltages between 100V and 240V. It is mounted on a panel using screws and is rated for IP20. The controller is part of the Zelio REG Series and is suitable for use in process and temperature control applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schneider REG48PUN1LHU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 100 |
| Control Method | On/Off, Proportional (PID) |
| Display Type | Segment |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 240V |
| Min Supply Voltage | 100V |
| Mount | Panel |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Output Type | RELAY |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| Series | Zelio REG Series |
| Size | 92.8mm |
| Termination | Screw |
| RoHS | Compliant |
Download the complete datasheet for Schneider REG48PUN1LHU to view detailed technical specifications.
