Very fast-acting electric fuse, 500mA current rating, 250VAC voltage rating, and 1500A interrupting rating. Features a 5x20mm ceramic body with nickel-plated contacts. Operates within a temperature range of -55°C to 125°C and has a maximum power dissipation of 2.5W. Suitable for holder or clip mounting, this fuse is RoHS compliant and carries multiple international approvals including VDE, cURus, UL, and CSA.
Current500mA
Voltage Rating250V
Current Rating500mA
MountingHolder, Surface Mount, Clip
Quick Jump:
Technical Specifications
Schurter 0001.1001 technical specifications.
General
Approvals
VDE, cURus, CCC, KC, UL, CSA, SEMKO
Body Material
Ceramic
Contact Plating
Nickel
Current
500mA
Current Rating
500mA
Diameter
5mm
Fuse Current
500mA
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
2.5W
Max Voltage Rating (AC)
250V
Mount
Holder, Surface Mount, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
2.5W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SP 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.041623oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.1001 Datasheet
Download the complete datasheet for Schurter 0001.1001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

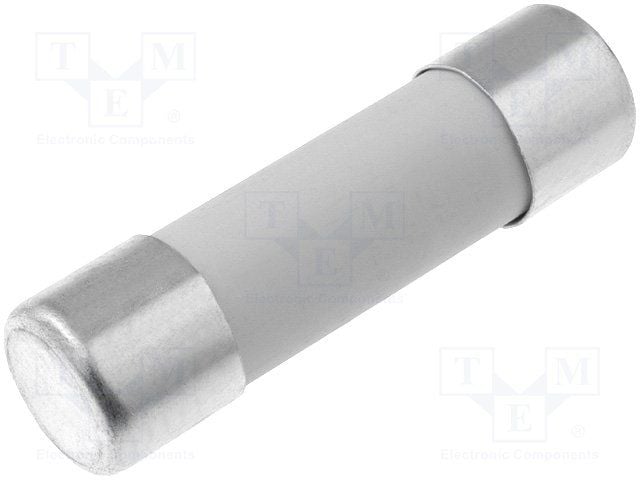

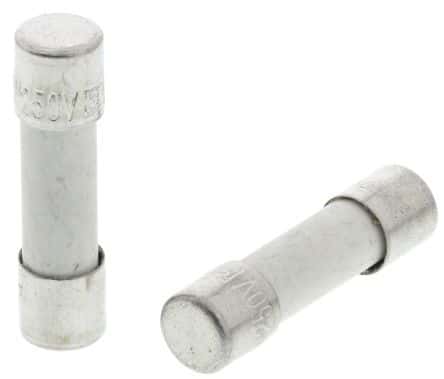

Product Images
