Very fast-acting electric fuse, 8A current rating, 250VAC voltage rating. Features a 5x20mm ceramic body with nickel-plated clip terminations for holder mounting. Designed for inline applications with a 1500A interrupting rating and a maximum power dissipation of 4W. Operates across a wide temperature range from -55°C to 125°C and is RoHS compliant.
Current8A
Voltage Rating250V
Current Rating8A
MountingHolder, Clip
Quick Jump:
Technical Specifications
Schurter 0001.1013 technical specifications.
General
Body Material
Ceramic
Contact Plating
Nickel
Current
8A
Current Rating
8A
Diameter
5mm
Fuse Current
8A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
4W
Max Voltage Rating (AC)
250V
Mount
Holder, Clip
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SP 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
0.03986oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.1013 Datasheet
Download the complete datasheet for Schurter 0001.1013 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

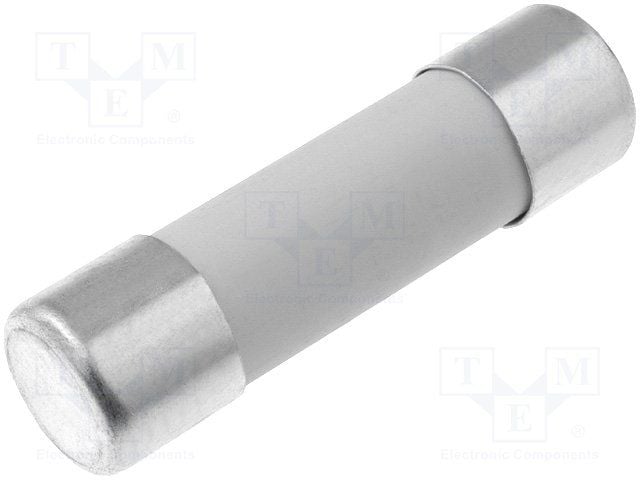

Product Images
