Fast-acting ceramic fuse with a 12.5A current rating and 250V AC voltage rating. Features a 5 x 20mm fuse size, nickel contact plating, and a ceramic body. Operates within a temperature range of -55°C to 125°C with a maximum power dissipation of 6.9W. This RoHS compliant component is designed for holder mounting and is supplied in bulk packaging.
Current12.5A
Voltage Rating250V
Current Rating12.5A
MountingHolder
Quick Jump:
Technical Specifications
Schurter 0001.1015 technical specifications.
General
Body Material
Ceramic
Contact Plating
Nickel
Current
12.5A
Current Rating
12.5A
Diameter
5mm
Fuse Current
12.5A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Mount
Holder
Package Quantity
10
Packaging
Bulk
Power Dissipation
6.9W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SP 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
0.040212oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.1015 Datasheet
Download the complete datasheet for Schurter 0001.1015 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

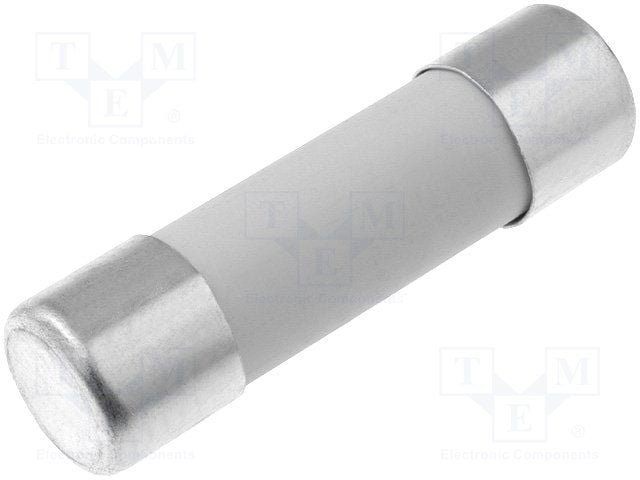

Product Images
