Time-delay electric fuse, 1.6A current rating, 250VAC and 300VDC voltage ratings. Features a 5x20mm fuse size with a ceramic body and nickel-plated contacts. Designed for inline or holder mounting, with a maximum interrupting rating of 1500A. Operates within a temperature range of -55°C to 125°C and has a maximum power dissipation of 700mW. RoHS compliant.
Current1.6A
Voltage Rating250V
Current Rating1.6A
MountingHolder, Surface Mount
Quick Jump:
Technical Specifications
Schurter 0001.2506 technical specifications.
General
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Contact Plating
Nickel
Current
1.6A
Current Rating
1.6A
Diameter
5mm
Fuse Current
1.6A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
700mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
300V
Mount
Holder, Surface Mount
Package Quantity
10
Packaging
Bulk
Power Dissipation
700mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SPT 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
300V
Weight
0.03986oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.2506 Datasheet
Download the complete datasheet for Schurter 0001.2506 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

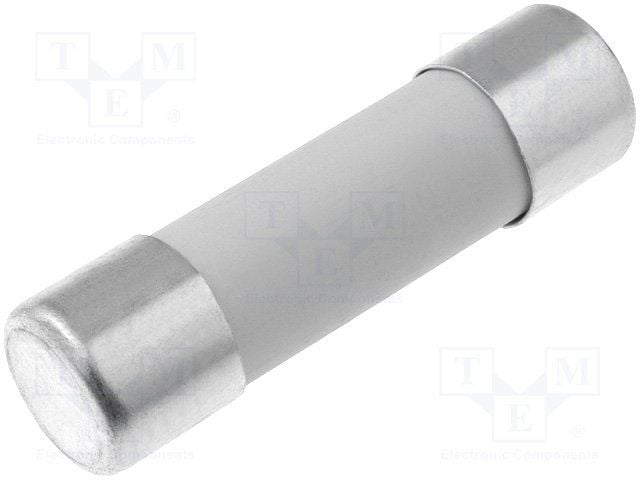

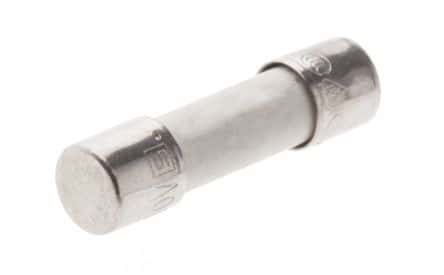

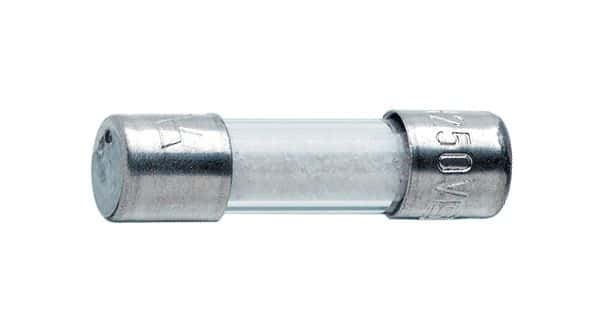

Product Images
