Time-lag electric fuse, 2A current rating, 250VAC/300VDC voltage rating, with a 1500A interrupting rating. Features a 5x20mm ceramic body and nickel-plated clip terminations for holder or surface mount applications. Operating temperature range is -55°C to 125°C, with a maximum power dissipation of 800mW. This RoHS compliant fuse meets IEC and EN approvals.
Current2A
Voltage Rating250V
Current Rating2A
MountingHolder, Surface Mount, Clip
Quick Jump:
Technical Specifications
Schurter 0001.2507 technical specifications.
General
Approvals
IEC, EN
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Contact Plating
Nickel
Current
2A
Current Rating
2A
Diameter
5mm
Fuse Current
2A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
800mW
Max Voltage Rating (AC)
250V
Mount
Holder, Surface Mount, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
800mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SPT 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
300V
Weight
0.03986oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.2507 Datasheet
Download the complete datasheet for Schurter 0001.2507 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

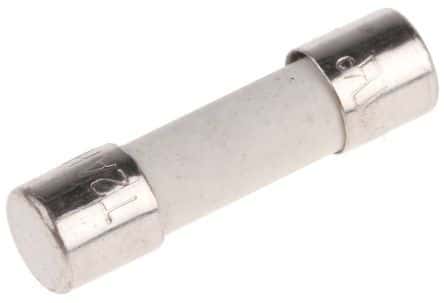

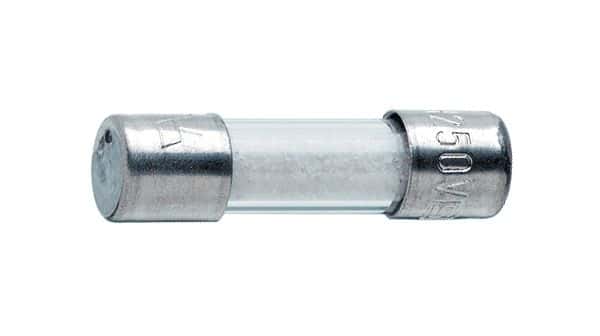

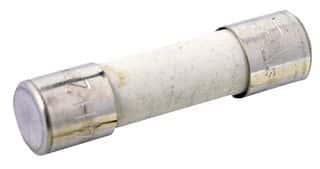

Product Images
